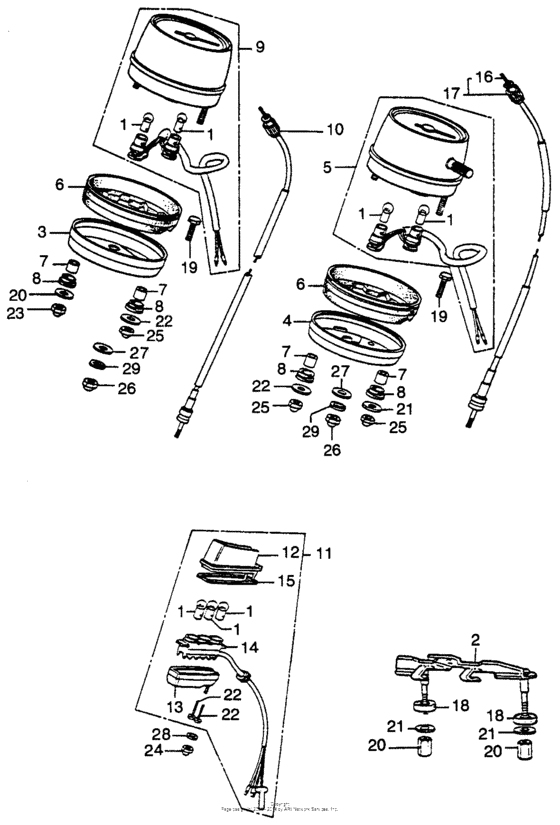

Speedometer + tachometer + pilot lamp

Honda CB360

Speedometer + tachometer + pilot lamp

Speedometer + tachometer + pilot lamp

1

1

1

1

1

1

1

2

3

4

4

5

6

6

7

7

7

7

8

8

8

8

9

10

11

12

13

14

15

18

18

19

19

21

21

21

23

24

25

25

25

26

26

27

27

28

29

29

#

oem код

название

цена

1

Bulb

Bulb

DASH (12V 3.4W) (STANLEY)

2

37211-369-008-B

Plate *nh1*

Plate *nh1*

3

Ring, r.

Ring, r.

4

Ring,l.meter set

Ring,l.meter set

4

Ring, l.

Ring, l.

5

Панель измерителей

Панель измерителей

6

Rubber, meter

Rubber, meter

7

Collar,meter set

Collar,meter set

8

Опора

Опора

9

Тахометр

Тахометр

10

Cable assy,tacho.

Cable assy,tacho.

11

Box,pilot lamp

Box,pilot lamp

12

Housing, pilot box

Housing, pilot box

13

Base, pilot box

Base, pilot box

14

Socket, pilot lamp

Socket, pilot lamp

15

Packing,base

Packing,base

18

Rubber,plate

Rubber,plate

19

Bolt, meter setting

Bolt, meter setting

21

Washer,meter,19mm

Washer,meter,19mm

23

Screw,tap.,3x16

Screw,tap.,3x16

24

94021-052-200-S

Nut,hex.,cap,5mm

Nut,hex.,cap,5mm

25

94021-062-200-S

Nut,hex.,cap,6mm

Nut,hex.,cap,6mm

26

94021-082-200-S

Nut,hex.,cap,8mm

Nut,hex.,cap,8mm

27

Шайба

Шайба

PLAIN, 8MM

28

Шайба

Шайба

SPRING, 5MM

29

Шайба

Шайба

SPRING, 8MM
