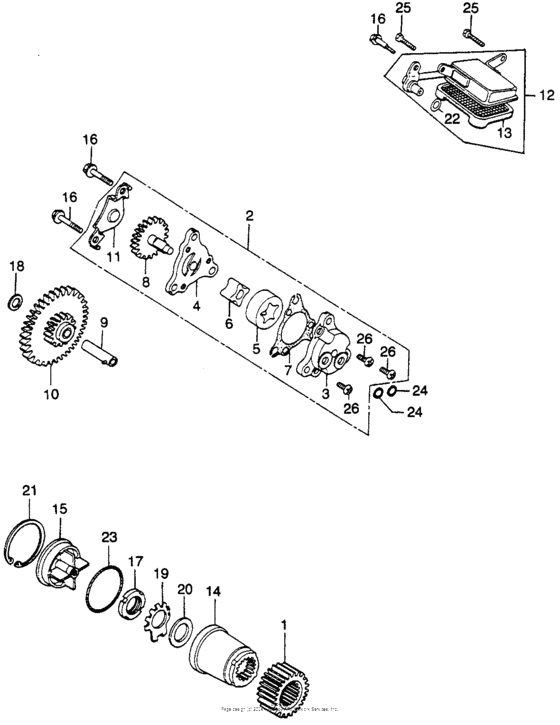

Oil filter + oil pump

Honda CB360

Honda
Oil filter + oil pump
#oem кодцена
1
13611-369-000
Gear,primary
2
15100-369-000
Pump assy.,oil
3
15111-369-000
Корпус масляного насоса
4
15121-369-000
Cover,oil pump
5
15122-329-010
Rotor, oil pump outer
6
15123-329-010
Rotor, oil pump inner
7
15129-369-000
Прокладка маслянного насоса
8
15131-369-000
Gear,oil pomp.dr.
9
15160-369-000
Shaft,oil pomp.id
10
15180-369-000
Gear,oil pomp.id.
11
15197-369-000
Plaate,oil pomp
12
15421-369-000
Screen,oil filter
13
15421-388-000
Screen,oil filter
14
15441-369-000
Rotor,oil filter
15
15450-286-010
Cap,oil filter
16
90087-369-000
Bolt,special,8x28
замена
90231-200-010
Nut, lock, 16mm
17
90231-KCS-651
Nut, lock (16mm)
18
90412-329-000
Washer, thrust, 10mm
19
90431-292-000
Washer,lock 16m/m
20
90481-292-000
Washer,filterlock
21
90604-292-000
Clip,cir 45m/m
22
91307-369-000
O-ring,9.8x4.0
23
91309-286-000
O ring,41x2
24
91312-107-000
Прокладка
25
92101-06012-0A
Болт
25
9210106012
Болт
26
93500-050-080-A
Болт
