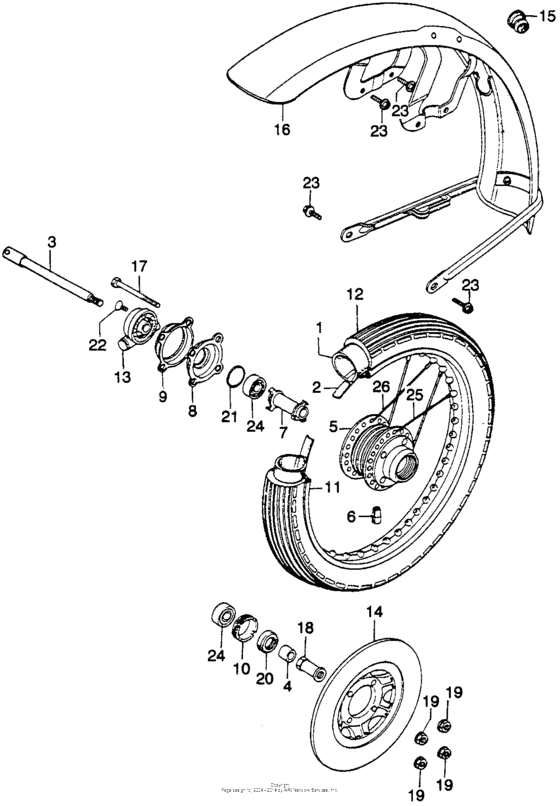

Cb360g front fender + front wheel + disc

Honda CB360

Honda
Cb360g front fender + front wheel + disc
#oem кодцена
1
42712-KC6-005
Tube (275/300-18)
2
42713-304-003
Заслонка
замена
42713-268-003
Flap,x-18a
3
44301-312-000
Axle,front.wheel
4
44311-371-980
Collar,wheel side
замена
44311-300-000
Collar fr wheel
5
44601-317-702
Hub,front wheel
6
44609-283-000
Балансир колеса
6
44608-283-000
Балансир колеса
6
44607-283-000
Балансир колеса
6
44606-283-000
Балансир
7
44620-317-701
Collar,front axle
8
44641-333-000
Retainer,gear box
9
44642-317-701
Cover,gear ret.
10
44643-300-000
Retainer fr wheel
11
44701-317-701
Rim,front wheel
12
44711-333-003
Tire300-184ps21f2
13
44800-317-700
Gear,box spdmt
14
45120-369-000
Disk,fr.brake
15
45451-367-690
Grommet, wire
16
61100-377-720
Fender.comp.,fr.
17
90122-317-702
Bolt,8x89
18
90306-425-870
Nut,axle,12mm
19
90309-357-000
Nut, hex., 8mm
20
91252-300-003
Dust,seal
21
91307-MB0-003
Прокладка
22
93700-050160A
Screw, oval (5x16)
23
95701-060-140-0
Болт
24
96150-6302010
Bearing (6302uu)
25
97311-692-331-0
Spoke,bs8x196.5
26
97716-692-321-0
Spoke,bs8x196.0
