Transmission + gearshift drum для мотоциклов Honda CB200 (0)

Москва и регионы России

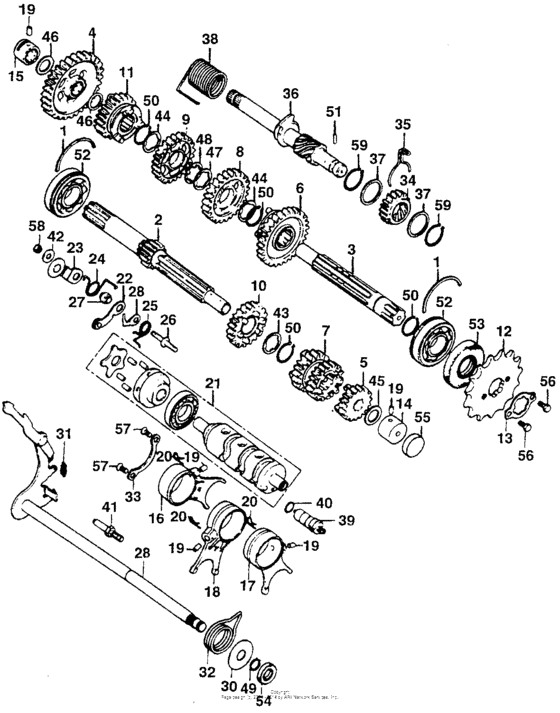

Transmission + gearshift drum

Honda CB200

Transmission + gearshift drum

Transmission + gearshift drum

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

19

19

19

19

20

20

20

21

22

23

24

25

26

27

28

28

30

31

32

33

34

35

36

37

37

38

39

40

41

41

42

43

44

44

45

46

46

47

48

49

50

50

50

50

51

52

52

53

54

55

56

56

57

57

58

59

59

#

oem код

название

цена

1

Кольцо поршня

Кольцо поршня

2

Вал

Вал

3

Shaft,counter

Shaft,counter

4

Gear.,c/shaft low

Gear.,c/shaft low

Use up to Engine SN 1000307

5

Gear,sec.main

Gear,sec.main

6

Gear,c/shaft 2

Gear,c/shaft 2

Use up to Engine SN 1000307

7

Gear,shifting

Gear,shifting

8

Gear,counter 3d

Gear,counter 3d

9

Gear,counter 4th

Gear,counter 4th

10

Gear,fifth,main

Gear,fifth,main

11

Gear,counter 5th

Gear,counter 5th

12

Sprocket,drive

Sprocket,drive

13

Plate b, fixing

Plate b, fixing

14

Bush a,bearing 15

Bush a,bearing 15

15

Bush,bearing 16mm

Bush,bearing 16mm

16

Fork,r gear shift

Fork,r gear shift

17

Fork,l,gear.shift

Fork,l,gear.shift

18

Fork,conter,gear,

Fork,conter,gear,

19

Штифт

Штифт

20

Clip,guide pin

Clip,guide pin

21

Drum.,gear.shift

Drum.,gear.shift

22

Arm.,neutral stop

Arm.,neutral stop

23

Stopper,shiftdrum

Stopper,shiftdrum

24

Пружина, стопор

Пружина, стопор

25

Пружина переключателя

Пружина переключателя

26

Pin,drum stopper

Pin,drum stopper

27

Collar,stopper

Collar,stopper

28

Plate,stopper arm

Plate,stopper arm

29

Spindle,gear

Spindle,gear

30

Stopper, spindle

Stopper, spindle

31

Пружина

Пружина

32

Пружина

Пружина

33

Plate,bearing set

Plate,bearing set

34

Pinion,kick

Pinion,kick

35

Пружина

Пружина

36

Spindle,starter

Spindle,starter

37

Washer,spindle

Washer,spindle

38

Spring,kick

Spring,kick

39

Switch,neutral

Switch,neutral

Use up to Engine SN 1006965

40

Прокладка

Прокладка

41

Pin,return spring

Pin,return spring

Use up to Engine SN 1057872

41

Штифт

Штифт

Use from Engine SN 1057873

42

Washer,shift,drum

Washer,shift,drum

43

Washer a, thrust

Washer a, thrust

44

Washer,thrust,a

Washer,thrust,a

45

Washer, thrust, 15mm

Washer, thrust, 15mm

46

Washer, thrust, 16mm

Washer, thrust, 16mm

47

Шайба упорная

Шайба упорная

48

Washer,lock 20m/m

Washer,lock 20m/m

49

Set ring, 12mm

Set ring, 12mm

50

Регулировочное кольцо (20mm)

Регулировочное кольцо (20mm)

51

Pin, knock, 4x15

Pin, knock, 4x15

52

B/brg rad n/com

B/brg rad n/com

53

Oil seal, 20x52x9

Oil seal, 20x52x9

54

Oilseal,12x25x4.5

Oilseal,12x25x4.5

55

Cap oil

Cap oil

56

Bolt, hex., 6x10

Bolt, hex., 6x10

57

93600-060-120-A

Болт

Болт

FLAT, 6X12

58

94001-062-000-S

Гайка

Гайка

HEX., 6MM

59

Circlip, external, 25mm

Circlip, external, 25mm
