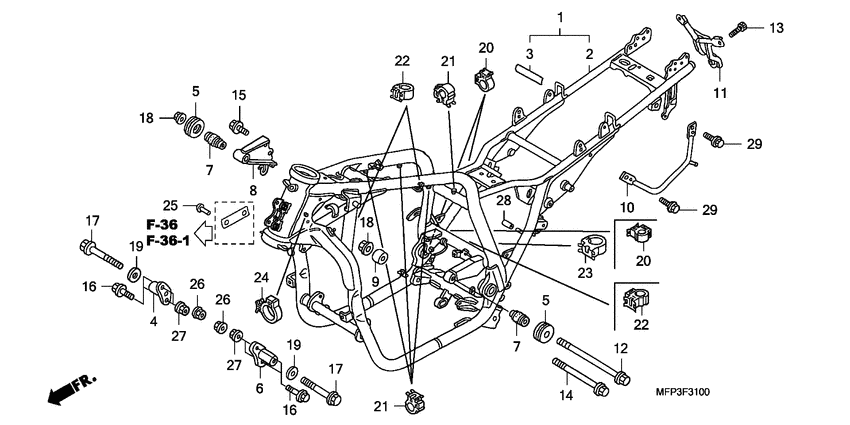

Frame body

Honda CB1300S (ABS) Super Bol d'Or

Honda
Frame body
#oem кодцена
1
50010-MFP-C30ZA
Body set
3
50159-KR3-300
Film, frame pipe
4
50202-MEJ-000
Brkt,fr eng hang
5
50203-MEJ-000
Mount rubber,c
6
50204-MEJ-000
Brkt,l fr eng han
7
50205-MEJ-000
Mount rubber e
8
50213-MEJ-J00
Держатель
9
50357-MEJ-000
Collar,rr eng han
10
50510-MEJ-000
Pipe,side grip
11
80105-MEJ-000
Stay,fender
12
90102-MEJ-000
Bolt,flange12x260
13
90102-MN8-700
Болт (8x25)
14
90106-MEJ-000
Bolt,flange12x193
15
90153-MEJ-000
Bolt,flange dr 10
16
90154-MEJ-000
Bolt,flange dr 10
17
90156-MEJ-000
Bolt,flange dr 10
18
90364-MEJ-000
Nut flange 12mm
19
90451-PE2-000
Шайба
20
90690-GHB-631
Clip, cable, 8mm
21
90690-GHB-641
Clip, cable, 10mm
22
90690-GHB-651
Clip, cable, 15mm
23
90690-GHB-661
Clip, cable, 20mm
26
94050-10000
Гайка
27
90303-428-900
Гайка(10mm)
замена
9405010070
Nut, flange, 10mm
29
95701-0801807
Bolt, flange, 8x18
