Swingarm + drive shaft для мотоциклов Honda CB1000 CB1000 (1983)

Москва и регионы России

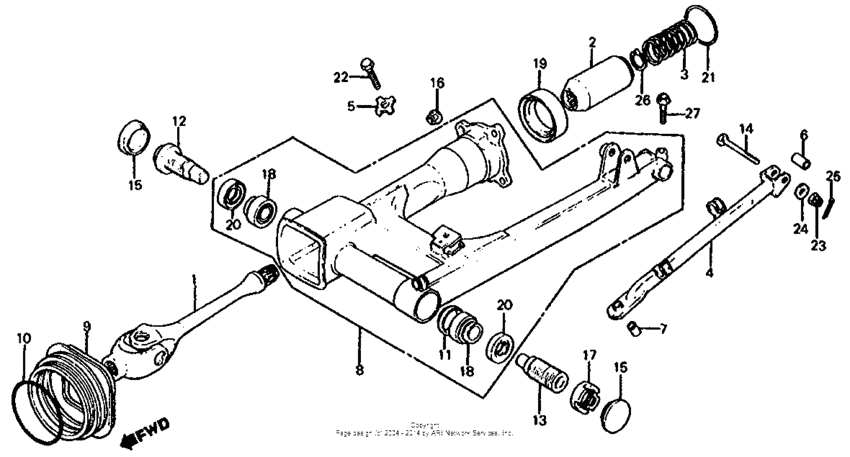

Swingarm + drive shaft

Honda CB1000 CB1000

Swingarm + drive shaft

Swingarm + drive shaft

1

2

3

4

5

6

7

8

9

11

12

13

14

15

15

15

17

18

18

19

19

20

20

21

22

23

24

25

25

25

25

25

25

27

#

oem код

название

цена

1

Вал ведущий

Вал ведущий

2

Joint,prop.shaft

Joint,prop.shaft

3

Spring, driveshaft

Spring, driveshaft

4

Arm,rr.brk.stpr.

Arm,rr.brk.stpr.

5

Washe.rr.brk.stop

Washe.rr.brk.stop

6

Collar, link

Collar, link

7

Collar,link

Collar,link

8

52100-MG1-000ZA

Swingarm, rr. *nh1*

Swingarm, rr. *nh1*

9

Boot,joint

Boot,joint

10

Spg,rr.fork boot

Spg,rr.fork boot

11

Hold,fork grease

Hold,fork grease

12

Bolt r rr fork

Bolt r rr fork

13

Bolt, l. rr.

Bolt, l. rr.

14

Bolt, rr

Bolt, rr

15

Cap,lock nut

Cap,lock nut

16

Nut, flange, 10mm

Nut, flange, 10mm

17

Nut, rr.

Nut, rr.

18

Подшипник

Подшипник

TAPER, 30203

19

Oil seal,43x52x7

Oil seal,43x52x7

20

Dust seal (26x40x5)

Dust seal (26x40x5)

21

O-ring,47x2.5

O-ring,47x2.5

22

Bolt, hex., 8x28

Bolt, hex., 8x28

23

Nut, self-lock (8mm)

Nut, self-lock (8mm)

24

Шайба

Шайба

PLAIN, 8MM

25

Штифт

Штифт

25

Штифт

Штифт

SPLIT, 2.0X22

25

Штифт

Штифт

SPLIT, 2.0X22

26

Пружинное стопорное кольцо

Пружинное стопорное кольцо

EXTERNAL, 20MM

27

Bolt, flange, 8x32

Bolt, flange, 8x32
