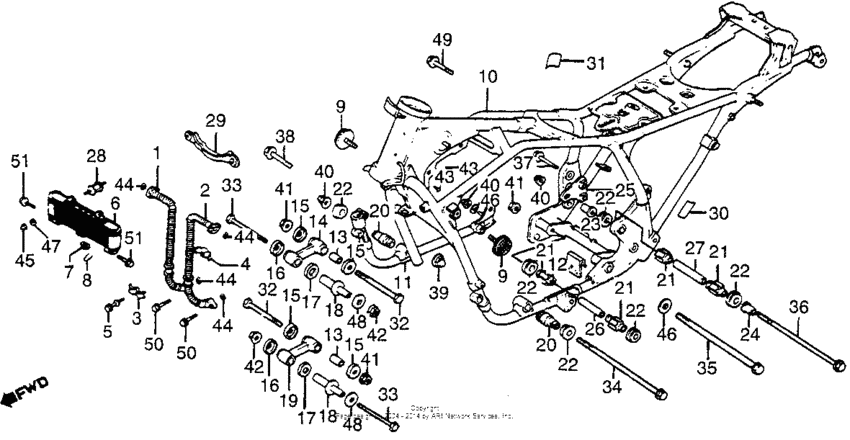

Frame + oil cooler

Honda CB1000 CB1000

Honda
Frame + oil cooler
#oem кодцена
1
15510-MG1-000
Hose comp.,r.oil
2
15515-MG1-000
Hose comp.,l.oil
3
15526-438-000
Holder a,oil hose
4
15527-438-000
Holder b,oil hose
5
15529-438-000
Bolt,oil hose
6
15600-MG5-671
Coller comp.,oil
7
15617-438-000
Rubber,oil cooler
8
15618-438-000
Pin,oil cooler
9
33742-HB9-641
Отражатель
10
50100-MG5-670ZA
Frame *nh1*
11
50122-438-670ZB
Pipe,joint*nh-1*
12
50147-MG5-670
Shim,eng.stopper
12
50146-MG5-670
Shim,eng.stopper
12
50145-MG5-670
Shim (1.5)
12
50144-MG5-670
Шайба (1.0)
12
50143-MG5-670
Шайба (0.5)
13
50184-438-670
Collar,rod pivot
14
50185-438-670
Rod r.tension
15
50186-438-670
Washer,rod pivot
16
50188-438-670
Washer b, pivot
17
50189-438-670
Washer c.pivot
18
50191-438-670
Collar b.pivot
19
50195-438-670
Rod,l.tension
20
50201-438-670
Rubber a,mount
21
50201-461-000
Rubber a,mount
22
50203-461-000
Rubber c,mount
23
50327-438-670
Collar,r.engine
24
50337-438-670
Collar,l.engine
25
50356-438-670
Brkt,rr.eng hange
26
50362-438-670
Collar b,distance
27
50363-438-670
Collar c,distance
28
85201-438-000
Опора
29
85202-461-000
Protector, harn
30
87504-463-670
Mark muff caution
31
87506-MA5-610
Mark,bat.caution
32
90017-438-670
Bolt,hex,10x80
33
95801-080-700-0
Bolt, flange, 8x70
34
90104-MB0-000
Bolt.flange10x345
35
90157-438-670
Bolt,eng.10x406
36
90162-MA3-660
Bolt,flange10x282
37
90166-MA3-660
Bolt,flange 8x55
38
96400-1005000
Болт
39
90208-438-000
Гайка
40
90201-HA0-000
Гайка
41
90304-GA6-003
Nut, axle, 10mm
42
90309-428-731
Nut, flange (self-lock) (m8x1.25)
43
90841-001-000
Голвка вилта
44
91301-MY9-003
O-ring,15x2.5
45
94021-060-700-S
Гайка
46
9410110000
Washer, plain, 10mm
47
94103-06700
Шайба
48
9410308200
Washer, plain, 8mm
49
95701-0802200
Bolt, flange, 8x22
50
96001-060-250-0
Болт
50
96000-0602500
Bolt, flange, 6x25
51
96001-0603507
Болт
