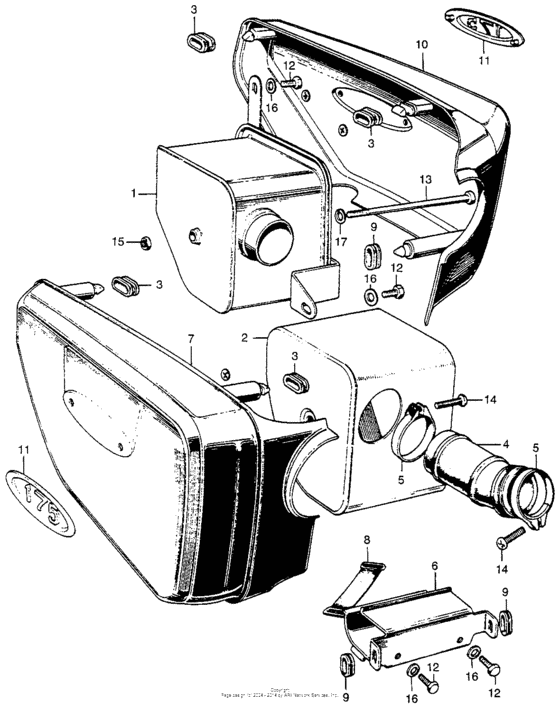

Ca175 air cleaner

Honda CA175 Touring

Ca175 air cleaner

Ca175 air cleaner

1

2

3

3

3

3

4

5

5

6

7

7

7

8

9

9

9

10

10

10

11

11

12

12

12

12

12

12

12

12

13

14

14

15

16

16

16

16

17

#

oem код

название

цена

1

Element,cleaner

Element,cleaner

2

Case air,cleaner

Case air,cleaner

3

Grommet a,cleaner

Grommet a,cleaner

4

Tube,air cleaner

Tube,air cleaner

5

Band a, a/clnr tube

Band a, a/clnr tube

6

Box,tool

Box,tool

7

83540-303-040XK

Cover,r side

Cover,r side

7

83540-303-040XJ

Cover,r side

Cover,r side

7

83540-303-040-B

Cover,r side

Cover,r side

8

Хомут

Хомут

9

Grommet, air cleaner case

Grommet, air cleaner case

10

83640-303-050XK

Cover,l side

Cover,l side

10

83640-303-050XJ

Cover,l side

Cover,l side

10

83640-303-050-B

Cover,l side

Cover,l side

11

87125-249-670-B

Emblem,case

Emblem,case

12

Болт

Болт

HEX., 6X12

12

Болт

Болт

13

Bolt hex.,6x125

Bolt hex.,6x125

14

93500-040-160-A

Болт

Болт

PAN, 4X16

15

94001-062-000-S

Гайка

Гайка

HEX., 6MM

16

Шайба

Шайба

PLAIN, 6MM

17

Шайба

Шайба

SPRING, 6MM
