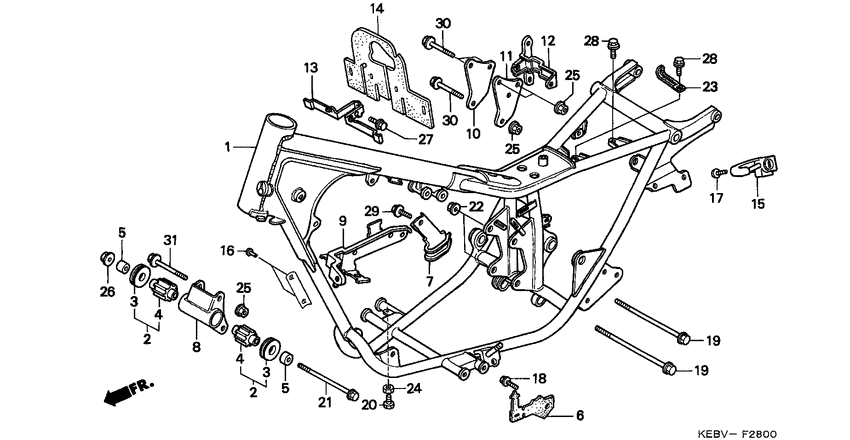

Frame body

Honda CA125 Rebel

Honda
Frame body
#oem кодцена
1
50100-KEB-621ZA
Frame body c*nh1*
2
50200-KR3-000
Rubber, setting
3
50203-MB0-010
Rubber c, mounting
4
50201-KN1-000
Rubber a, mount
5
50218-KEB-620
Collar d engine side
6
50219-KEB-900
Cover, oil drain
7
50324-KR3-980
Clamp, drain tube
8
50351-KEB-620
Bracket fr. eng. han
9
50352-KEB-900
Plate,electric
10
50353-KEB-620
Plate.r,upper eng
11
50354-KEB-620
Plate.l,upper eng
12
50357-KEB-620
Stay comp. side cove
13
50361-KEB-620
Stay wind guard
14
50362-KEN-670
Rubber, wind guard
15
50710-GB4-007
Holder assy., helmet
16
90040-GAS-900
Rivet blind 2,4x7
17
90105-KEB-620
Bolt, one-way (6x12)
18
90111-162-000
Болт
19
90116-VM6-003
Bolt, flg (10x110)
20
90117-KEB-620
Bolt.hex.,6x32
21
90127-KR3-000
Bolt, flg (10x130)
22
90308-382-670
Nut, flange, 10mm
23
91405-671-000
Зажим
24
94001-062-700-S
Nut,hex.,6mm
25
94050-08000
Гайка
26
94050-10000
Гайка
27
95701-060-100-7
Болт
28
95701-060-120-7
Болт
29
95701-060-140-8
Болт
30
95701-0803800
Bolt, flange, 8x38
31
95701-0806500
Bolt, flange, 8x65
