Rear cushion для мотоциклов Honda C90 CUB (1982)

Москва и регионы России

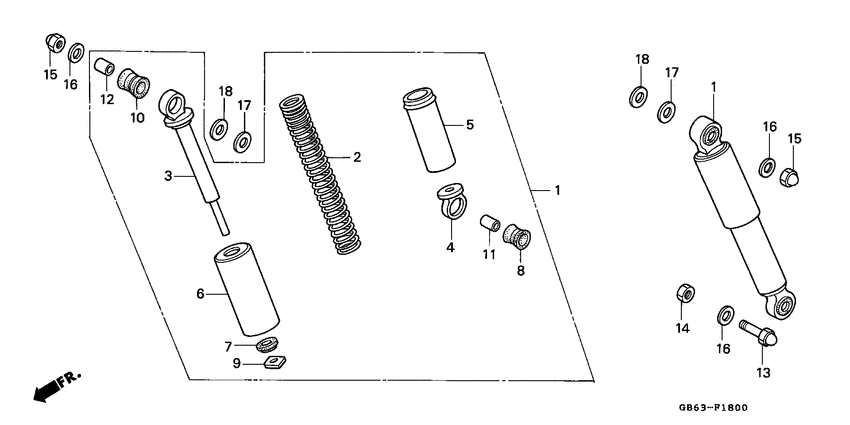

Rear cushion

Honda C90 CUB

Rear cushion

Rear cushion

1

1

1

1

2

3

4

5

6

6

7

8

9

10

11

12

13

14

15

15

16

16

16

17

17

18

18

#

oem код

название

цена

1

52400-174-671ZE

Cush*pb-52/nh-24*

Cush*pb-52/nh-24*

1

52400-174-671ZD

Cush*r-23/nh-24*

Cush*r-23/nh-24*

2

Spring,rr.cushion

Spring,rr.cushion

3

Damper,rr

Damper,rr

4

Metal,cush bottom

Metal,cush bottom

5

52423-174-671ZA

Case,rr.*nh-24*

Case,rr.*nh-24*

6

52460-174-671ZE

Case,cush.*pb-52*

Case,cush.*pb-52*

6

52460-174-671ZD

Case,cush.*r-23*

Case,cush.*r-23*

7

Rubber,cushion

Rubber,cushion

8

Bush, rr.

Bush, rr.

9

Nut,lock 8mm

Nut,lock 8mm

10

Bush,rub upper

Bush,rub upper

11

Манжета

Манжета

12

Collar, cushion

Collar, cushion

13

Bolt,hex 10x45

Bolt,hex 10x45

14

94001-100-000-S

Гайка

Гайка

HEX., 10MM

15

Nut, cap, 10mm

Nut, cap, 10mm

16

Washer, plain, 10mm

Washer, plain, 10mm

17

Шайба

Шайба

PLAIN, 12MM

18

Шайба

Шайба

PLAIN, 12MM
