Taillight unit ass`y для мотоциклов Honda C90 CUB (1997)

Москва и регионы России

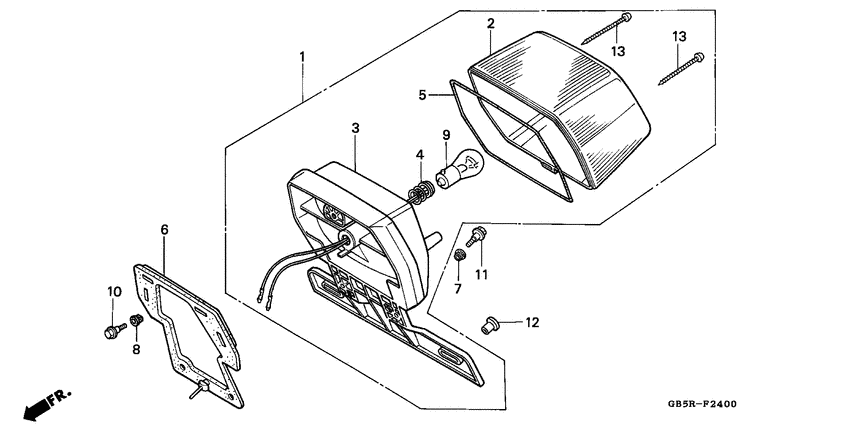

Taillight unit ass`y

Honda C90 CUB

Taillight unit ass`y

Taillight unit ass`y

1

2

3

4

5

6

7

8

9

10

11

11

12

13

13

#

oem код

название

цена

1

Unit,tail light

Unit,tail light

2

Lens comp.,tail l

Lens comp.,tail l

3

Base comp.,tail l

Base comp.,tail l

4

Cord,tall light

Cord,tall light

5

Packing,tail lens

Packing,tail lens

6

Rub,taillight

Rub,taillight

7

Rub,no.cush.brkt.

Rub,no.cush.brkt.

8

Rub,b,taillight

Rub,b,taillight

9

Bulb, tail light

Bulb, tail light

10

Bolt, flange, 5x20

Bolt, flange, 5x20

11

Bolt,rr.carrier s

Bolt,rr.carrier s

11

Bolt,flange 6x25

Bolt,flange 6x25

12

Washer, chain case setting

Washer, chain case setting

13

Винт (4x30)

Винт (4x30)
