Front wheel/panel

Honda C50 CUB

Honda

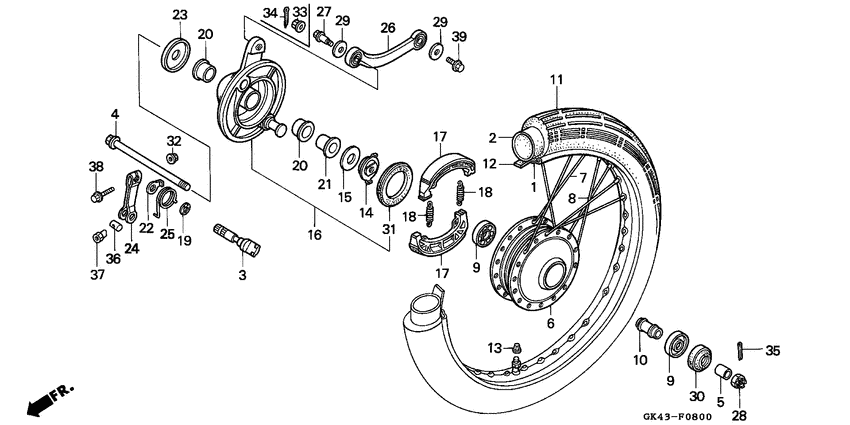

Front wheel/panel
#oem кодцена
замена
42701-041-010
Rim,rr,wheel
1
42701-001-073
Обод
замена
42701-001-063
Rim,rr.wheel
2
42712-041-154
Tube,tire
замена
42712-041-003
Tube2251250-17tr6
2
42712-GK4-004
Tube tire
3
43141-400-010
Кулачок
4
44301-GAC-000
Axle,fr.wheel
замена
44301-041-680
Axle e wheel
5
44311-041-000
Collar,wheel side
6
44601-GB4-000ZA
Hub,wheel*nh-35m*
7
44605-171-305
Spoke a,12x159.5
8
44606-171-305
Spokeset a,12x159
9
44616-GK4-005
B/brg rad n/com
9
44616-GK4-003
Brg radial ball
10
44620-171-000
Collar,fr dist
11
44711-041-154
Tire,fr.(2.25-17)
11
44711-041-006
Tire,front
11
44711-GK4-004
Tire
11
44711-GK4-003
Tire
12
44713-001-003
Flap,tire (17 bs)
12
42713-MG7-003
Flap,tire
замена
44713-001-000
Заслонка
12
42713-GK4-004
Flap tire
13
44717-041-000
Cap,tire tube vlv
14
44806-GK4-761
Gear.spdmt
15
44808-107-720
Шайба
16
45010-GK4-760ZA
Panel sub comp.
17
45120-096-652
*451a2-096-305
17
06450-178-932
Колодки
замена
45120-096-651
Shoe, brake
18
45133-028-000
Скоба
19
45134-250-000
Сальник
20
45140-GK4-761
Втулка
21
45141-GK4-760
Кольцо/шайба
22
45145-121-710
Указатель
23
45151-GK4-760
Cap comp.
24
45410-GB4-000
Arm,fr,brake
25
45411-GB4-680
Пружина
26
45430-GK4-760
Соединение
27
90141-GK4-761
Болт
28
90305-041-000
Nut,rear axle
29
90451-GK4-760
Washer, 10.2x32x1.6
30
90752-GK4-005
Oil seal,21x35x7
30
90752-GK4-003
Oil seal,21x35x7
31
91251-GK4-005
Oil seal,47x60x7
31
91251-GK4-003
Oil seal (47x60x7)
32
94050-06000
Гайка
35
9420125300
Pin, split, 2.5x30
замена
94201-25200
Штифт
36
9501532001
Соединитель
37
9501542000
Nut b, brake rod adjusting
38
95700-060-280-0
Болт
39
95701-100-320-0
Bolt, flange, 10x32
замена
95700-100-320-0
Bolt, flange, 10x32
