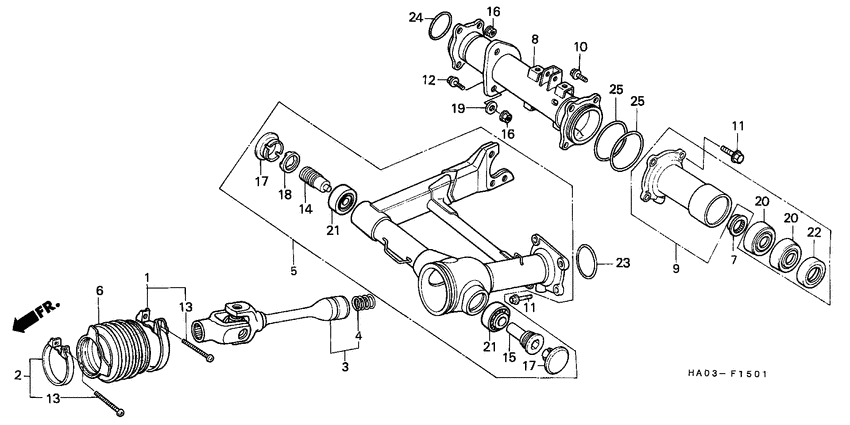

Rear fork/propeller shaft

Honda ATC250ES Big Red

Honda
Rear fork/propeller shaft
#oem кодцена
1
95018-86250
Band (86)
замена
17256-HA0-680
Band assy.,boot j
2
17258-HA0-680
Band assy.,boot j
3
40200-HA0-680
Joint comp.,yoke
4
40215-ME9-003
Пружина
5
52100-HA0-680
Fork assy.,rr.
6
52101-HA0-680
Boot,joint
7
52112-HA0-000
Stopper, bearing
8
52130-HA0-680
Housing comp,rear
9
52140-HA0-770
Housing assy.,l.p
замена
52140-HA0-680
Housing assy.,l.p
замена
90105-HA0-010
Bolt,spl,10mm
10
90109-HA0-681
Bolt.spl,10mm
замена
90105-HA0-000
Bolt,secial,10mm
11
90131-KAN-850
Болт
замена
90108-HA0-680
Bolt,flange,8x28
12
90109-HA0-681
Bolt.spl,10mm
замена
90109-HA0-680
Bolt,special,10mm
13
90113-HA0-680
Винт (5x32)
14
90121-HA0-000
Bolt,r pivot
15
90122-MB0-000
Bolt, l. rr.
16
90304-GE8-003
Nut, u, 10mm
17
90312-HA0-000
Cap, lock nut
18
90355-469-000
Nut, rr.
19
90401-437-000
Washer, plain, 10mm
20
91055-HA0-681
Bearing (32x58x13)
21
91066-HA0-681
Brg,tap.17x40x13.
22
91255-HA0-681
Oil seal (42x58x10)
23
91308-500-010
Прокладка
замена
91302-HA2-000
Прокладка
24
91308-HA8-000
O-ring,47.6x2
25
91351-737-752
O-ring, rotary case
