Rear wheel complete assy для мотоциклов Honda ANF125 Innova (2007)

Москва и регионы России

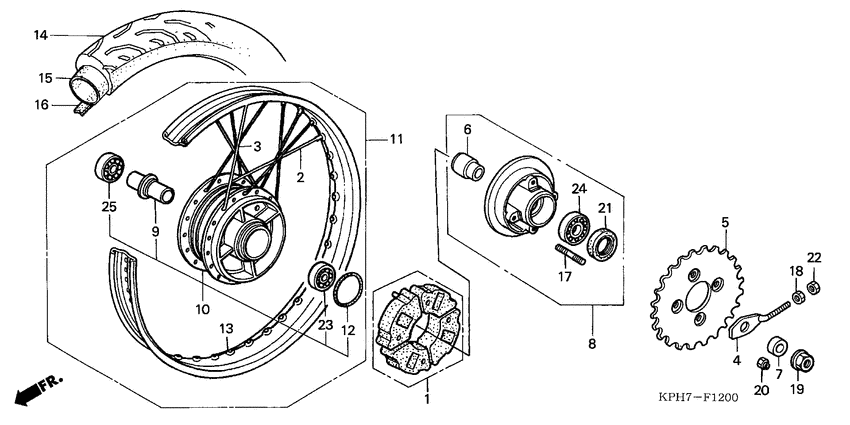

Rear wheel complete assy

Honda ANF125 Innova

Rear wheel complete assy

Rear wheel complete assy

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

20

21

21

22

23

24

25

#

oem код

название

цена

1

Набор втулок

Набор втулок

WHEEL

2

Spoke set a

Spoke set a

10X159.0

3

Spoke set a

Spoke set a

10X158.5

4

Adjuster r,chain

Adjuster r,chain

5

Sprocket,final dr

Sprocket,final dr

6

Sleeve,rear wheel

Sleeve,rear wheel

7

Collar,rr wheel s

Collar,rr wheel s

8

Flange sub assy,f

Flange sub assy,f

9

Collar,rr axle di

Collar,rr axle di

10

42635-KPH-900ZA

Hub sub,a*nh364m*

Hub sub,a*nh364m*

11

42650-KPH-970ZA

Wheel sub*nh364m*

Wheel sub*nh364m*

12

Прокладка

Прокладка

13

Rim,rr wheel

Rim,rr wheel

14

Tire,rr(dun)

Tire,rr(dun)

15

Tube,tire

Tube,tire

16

Flap,tire

Flap,tire

17

Bolt,stud,8x25

Bolt,stud,8x25

18

Nut, special, 6mm

Nut, special, 6mm

19

Nut,u,12mm

Nut,u,12mm

20

Nut,u 8mm

Nut,u 8mm

20

Nut, u, 8mm (fuse rashi)

Nut, u, 8mm (fuse rashi)

21

Dust seal,27x40x4

Dust seal,27x40x4

21

Dust seal,27x40x4

Dust seal,27x40x4

22

94001-062-000-S

Гайка

Гайка

HEX., 6MM

замена

94001-060-000-S

Гайка

Гайка

HEX., 6MM

23

Подшипник

Подшипник

24

Подпишиник

Подпишиник

25

96140-630-101-0

Подшипник

Подшипник
