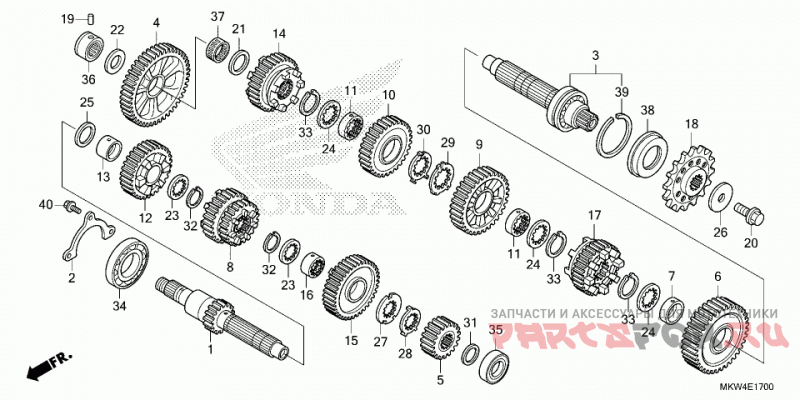

Трансмиссия 1

Honda (Америка) NC750XA AC

Honda (Америка)
#oem кодцена
11
23482-MV9-670
COLLAR, SPLINE (28X31X9)
13
23492-MGS-D30
Втулка (25x28x19)
16
23512-MV9-670
COLLAR, SPLINE (25X28X13)
19
24261-283-000
PIN, GEARSHIFT FORK GUIDE
2
23212-MGS-D30
PLATE, MAINSHAFT BEARING SETTING
20
90037-422-003
Болт (10mm)
21
90402-MEW-920
WASHER, THRUST (24X32X1.5)
22
90451-704-000
WASHER A, THRUST (20MM)
23
90451-KY2-000
WASHER, SPLINE (25X31X1.5)
24
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
25
90456-MA6-000
WASHER, THRUST (25MM)
26
90459-438-000
Шайба (10.2mm)
27
90461-MW0-000
WASHER, SPLINE (25MM)
28
90462-MBW-000
WASHER, LOCK (25MM)
29
90463-MR7-000
WASHER, SPLINE (28MM)
30
90464-MR7-000
Шайба (28mm)
31
90469-ME5-000
WASHER, THRUST (20X0.9)
32
90601-107-000
Стопорное кольцо (25mm)
33
90603-MN4-000
Стопорное кольцо (28mm)
34
91001-MGS-D31
BEARING, RADIAL BALL (31X68X15)
35
91006-MGS-D31
BEARING, RADIAL BALL (6204U)
36
91022-MJE-DB1
BEARING, NEEDLE (20MM) (NTN)
37
91026-MEL-003
BEARING, NEEDLE (24X28X10)
38
91207-KT8-003
OIL SEAL (34X62X8)
39
94560-62200
RING, SNAP (62MM)
40
95701-06014-00
Болт (6x14)
7
23442-MM4-000
Втулка 28мм
