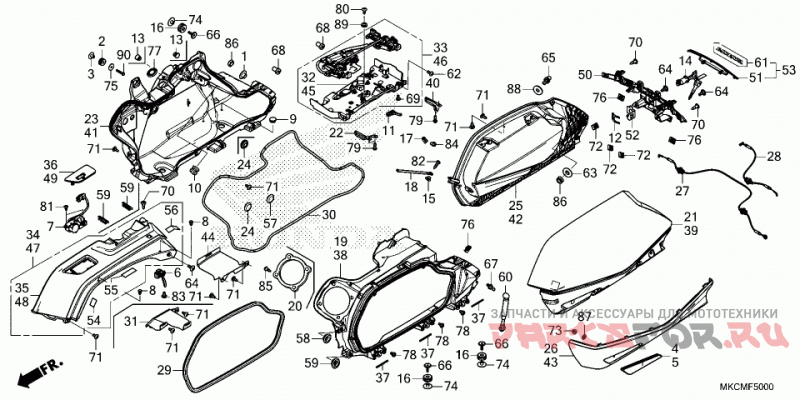

Боковые кофры

Honda (Америка) GL1800DA 3AC

Honda (Америка)
#oem кодцена
1
18422-MR1-000
Втулка (8mm)
10
50318-041-600
Затычка
11
53190-MEN-670
Рычаг
12
75581-GN8-920
SPRING, LOCK KEY SETTING
13
77212-965-000
RUBBER, SEAT SIDE (RIGHT SIDE)
14
77234-MKC-A01
KEY, EMERGENCY
15
80103-MCJ-750
COLLAR, FENDER SETTING
16
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
17
81254-MN5-000
STAY B, LID STOPPER
18
81255-MKC-A00
CABLE, SADDLEBAG STOPPER
19
81311-MKC-A00
BODY, R. SADDLEBAG
2
19051-KA3-710
RUBBER, RADIATOR MOUNTING
21
81320-MKC-L60ZB
LID SET, R. SADDLEBAG *R367C* (WL) (CANDY ARDENT RED)
21
81320-MKC-L20ZB
LID, R. SADDLEBAG (TYPE1) (WOL)
22
81324-MKC-A00
ROD A, SADDLEBAG STRIKER
23
81331-MKC-A00
PANEL, R. SADDLEBAG
24
81336-MKC-A00
PLUG, BLIND (20MM)
25
81341-MKC-A00
INNER LID, R. SADDLEBAG
26
81344-MKC-A00ZA
COVER, R. SADDLEBAG LID *NH1* (BLACK)
27
81345-MKC-A01
CABLE, R. SADDLEBAG EMERGENCY
28
81346-MKC-A01
CABLE, L. SADDLEBAG EMERGENCY
29
81350-MKC-A00
RUBBER, SADDLEBAG LID SEAL
3
19052-KA3-710
COLLAR, RADIATOR MOUNTING
30
81351-MKC-A00
RUBBER, BACK PANEL SEAL
31
81359-MKC-A00
GUARD, R. SADDLEBAG HEAT
32
81362-MKC-A00
COVER, R. SADDLEBAG CATCH (NOT AVAILABLE)
33
81365-MKC-A01
CATCH ASSY., R. SADDLEBAG
34
81391-MKC-L20ZB
COVER ASSY., R. SADDLEBAG (UPPER) (TYPE1)
35
81393-MKC-A00ZE
COVER, R. SADDLEBAG (UPPER) (TYPE1)
36
81395-MKC-A00
COVER, R. SADDLEBAG SWITCH
37
81401-MKC-A00
PIN, SADDLEBAG HINGE
38
81411-MKC-A00
BODY, L. SADDLEBAG
39
81420-MKC-L60ZB
LID SET, L. SADDLEBAG *R367C* (WL) (CANDY ARDENT RED)
39
81420-MKC-L20ZB
LID, L. SADDLEBAG (TYPE1) (WOL)
4
33743-MKC-A04
REFLECTOR, R. RR. REFLEX
40
81424-MKC-A00
ROD B, SADDLEBAG STRIKER
41
81431-MKC-A00
PANEL, L. SADDLEBAG
42
81441-MKC-A00
INNER LID, L. SADDLEBAG
43
81444-MKC-A00ZA
COVER, L. SADDLEBAG LID *NH1* (BLACK)
44
81459-MKC-A00
GUARD, L. SADDLEBAG HEAT
45
81462-MKC-A00
COVER, L. SADDLEBAG CATCH (NOT AVAILABLE)
46
81465-MKC-A01
CATCH ASSY., L. SADDLEBAG
47
81491-MKC-L20ZB
COVER ASSY., L. SADDLEBAG (UPPER) (TYPE1)
48
81493-MKC-A00ZE
COVER, L. SADDLEBAG (UPPER) (TYPE1)
49
81495-MKC-A00
COVER, L. SADDLEBAG SWITCH
5
33744-MKC-A04
REFLECTOR, L. RR. REFLEX
50
81501-MKC-A00
COWL, RR. CENTER SADDLEBAG
51
81502-MKC-A00
COVER, RR. CENTER SADDLEBAG
52
81504-MKC-A00
STAY, EMERGENCY CABLE
54
81997-MKC-A01
TAPE D, PROTECTION
55
81998-MKC-A00
TAPE E, PROTECTION
56
81999-MKC-A00
TAPE F, PROTECTION
57
82871-671-000
GROMMET, DRAIN HOLE (25MM)
58
83504-GE0-000
GROMMET, RR. COVER
59
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
6
35380-MKC-A01
SWITCH ASSY., LID OPENER
60
83590-MKC-A01
DAMPER, SADDLEBAG LID
62
90001-MG1-000
SCREW, SPECIAL (5X16)
63
90006-KC5-000
COLLAR A, FENDER SETTING
64
90101-MJJ-D30
SCREW, SPECIAL (5X14)
65
90108-KWR-003
STUD, BALL
66
90109-MCA-000
Винт 6мм
67
90109-SCK-003
STUD, BALL
68
90111-MGS-D70
Гайка (5mm)
69
90112-MJK-N20
Винт (5х12)
7
39500-MKC-A01
SWITCH ASSY., PASSENGER
70
90116-SP0-003
Клипс
71
90121-MJK-N20
SCREW, TAPPING (5X12)
72
90301-KE1-003
Гайка (5mm)
73
90301-MG8-000
NUT, FLANGE (5MM) (FUSE RASHI)
74
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
75
90506-430-000
WASHER, FENDER MOUNTING
76
90677-KAN-961
Гайка
77
90830-T0T-003
GROMMET (30MM)
78
93901-24180
Винт (4x8)
79
93901-25380
SCREW, TAPPING (5X16)
8
50049-046-000
PLUG, HEAD PIPE
80
93903-24220
SCREW, TAPPING (4X10)
81
93903-24280
SCREW, TAPPING (4X10)
82
93903-25420
SCREW, TAPPING (5X20)
83
93903-32180
SCREW, TAPPING (3X8)
84
93911-14480
SCREW, TAPPING (4X16)
86
94001-08000-0S
Гайка (8мм)
87
94101-05800
Шайба
88
94101-08000
Шайба (8mm)
89
94103-04800
Шайба (4mm)
9
50317-254-000
Затычка
90
96001-06032-00
Болт (6х32)
