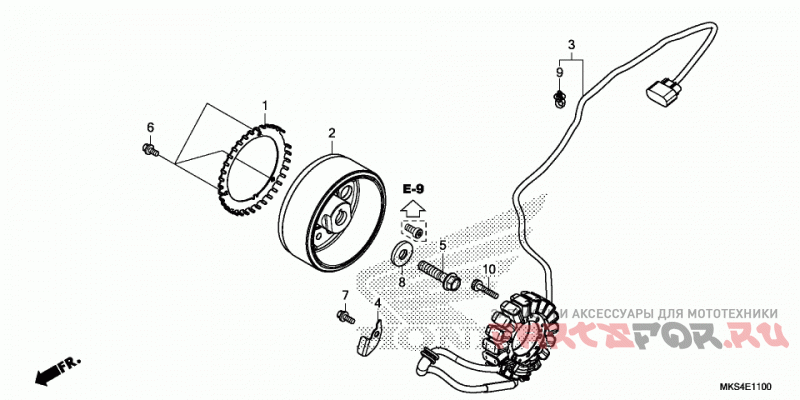

Генератор
Honda (Америка) CRF1100D4 AC
| # | oem код | название | цена |
|---|---|---|---|
1 | 30291-MKS-E00 PLATE, CRANK PULSER | PLATE, CRANK PULSER | |
10 | 96600-06035-00 BOLT, SOCKET (6X35) | BOLT, SOCKET (6X35) | |
2 | 31110-MKS-E01 Маховик | Маховик | |
3 | 31120-MKS-E01 Статор | Статор | |
4 | 32961-MKS-E00 CLAMP, ALTERNATOR WIRE | CLAMP, ALTERNATOR WIRE | |
5 | 90023-MJP-G50 BOLT, FLANGE (12X53) | BOLT, FLANGE (12X53) | |
6 | 90025-GHB-610 Болт (6x10) | Болт (6x10) | |
7 | 90025-GHB-640 Болт (6x16) | Болт (6x16) | |
8 | 90403-MEW-920 WASHER (12.5X34X5) | WASHER (12.5X34X5) | |
9 | 91541-S0A-003 CLIP, HARNESS BAND (145MM) (BLACK) | CLIP, HARNESS BAND (145MM) (BLACK) |
