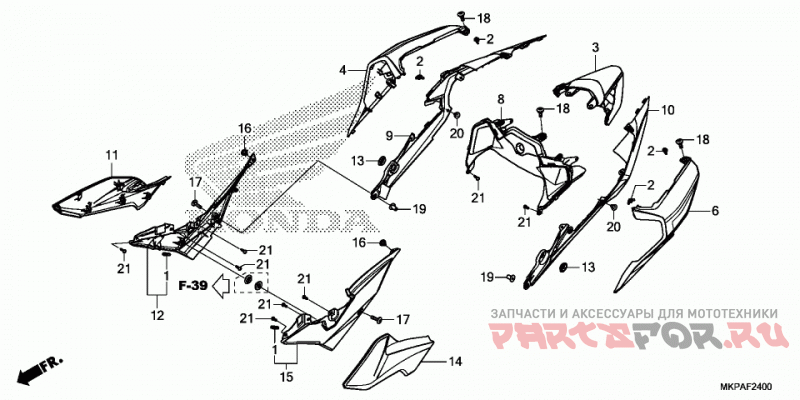

Сидение и обтекатели сиденья

Honda (Америка) CBR500RA AC

Honda (Америка)
#oem кодцена
1
64122-MCZ-000
Резинка
10
77281-MKP-J00
COWL B, L. RR.
11
83510-MKP-J00ZA
COVER ASSY., R. SIDE *R380* (A) (GRAND PRIX RED)
11
83510-MKP-J00ZB
COVER ASSY., R. SIDE *NH303M* (A) (MAT AXIS GRAY METALLIC)
12
83520-MKP-J00
COVER B ASSY., R. SIDE
13
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
14
83610-MKP-J00ZA
COVER ASSY., L. SIDE *R380* (A) (GRAND PRIX RED)
14
83610-MKP-J00ZB
COVER ASSY., L. SIDE *NH303M* (A) (MAT AXIS GRAY METALLIC)
15
83620-MKP-J00
COVER B ASSY., L. SIDE
16
90116-K0A-E11
RIVET, PUSH (6MM)
17
90117-MGZ-J80
Винт (5x20)
18
90133-KPP-T00
Винт (6x14)
19
90156-GZ4-670
Гайка (5mm)
2
64213-MJN-A01
CLIP, TWIST
20
90683-GR1-003
Клипс
21
93903-24380
SCREW, TAPPING (4X12)
3
77231-MJW-J01ZB
COWL, RR. CENTER *NH303M* (MAT AXIS GRAY METALLIC)
4
77240-MKP-J00ZC
COWL SET A, R. RR. (TYPE1) (WL)
4
77240-MKP-J00ZB
COWL SET A, R. RR. (TYPE2) (WL)
6
77250-MKP-J00ZC
COWL SET A, L. RR. (TYPE1) (WL)
6
77250-MKP-J00ZB
COWL SET A, L. RR. (TYPE2) (WL)
8
77261-MKP-J00
COWL, SEAT CENTER
9
77271-MKP-J00
COWL B, R. RR.
