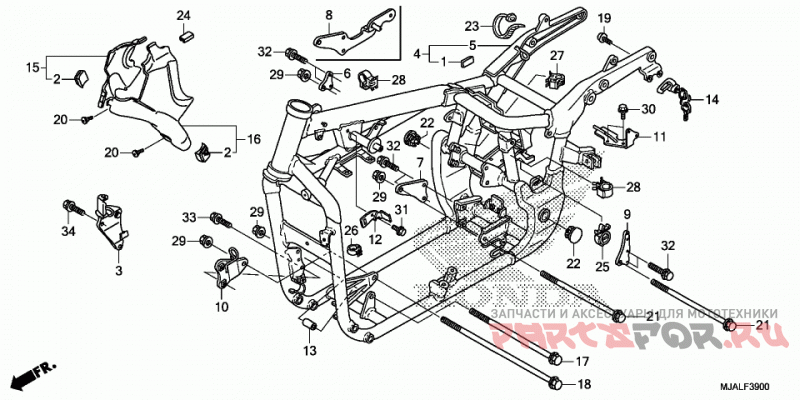

Рама

Honda (Америка) VT750C A

Honda (Америка)
#oem кодцена
1
17503-MY1-300
FILM, PROTECTOR
10
50176-MFE-671
PLATE, FR. ENGINE HANGER (UPPER)
11
50182-MEG-L90
Кронштейн
13
50363-KT7-000
COLLAR, ENGINE HANGER
14
50710-GCN-305
HOLDER ASSY., HELMET (HONDALOCK)
15
63550-MEG-A60
COVER, R. FR. SIDE
16
63650-MEG-A60
COVER, L. FR. SIDE
17
90103-GC2-920
BOLT, ENGINE HANGER
18
90104-MBS-000
BOLT, FLANGE (10X208)
19
90106-MAV-000
Винт (6х12)
2
33740-MEG-671
REFLECTOR, FR. SIDE REFLEX
20
90106-MBY-000
SCREW, SPECIAL (5X12)
21
90154-KE7-000
BOLT, UBS (10X141)
22
90312-MB0-700
CAP, R. LOCK NUT
23
90652-KT1-771
BAND, WIRE (BLACK)
24
90655-MEG-000
CLAMP, COVER
25
90684-ZA0-601
Зажим
26
90690-GHB-631
CLIP, CABLE (8MM)
28
90690-GHB-671
CLIP, CABLE (25MM)
29
90303-428-900
Гайка(10mm)
3
46505-MEG-000
BRACKET, RR. BRAKE PEDAL
30
95701-06010-07
Болт (6x10)
32
95701-08016-07
Болт (8x16)
33
95701-08020-07
Болт (8х20)
34
95701-10025-07
Болт (10x25)
4
50010-MEG-A60
FRAME SET
6
50171-MEG-000
BRACKET, R. RR. ENGINE HANGER (UPPER)
7
50172-MEG-000
BRACKET, R. RR. ENGINE HANGER (LOWER)
8
50172-MEG-L90
BRACKET, R. RR. ENGINE HANGER (LOWER)
9
50173-MEG-670
BRACKET, L. RR. ENGINE HANGER (UPPER)
