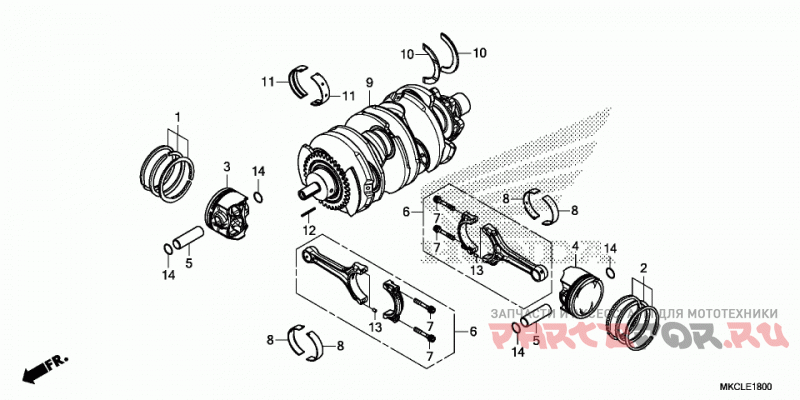

Коленчатый вал и поршни

Honda (Америка) GL1800D 2AC

Honda (Америка)
#oem кодцена
1
13011-MKC-A00
RING SET, R. PISTON (0.25)
1
13010-MKC-A00
RING SET, R. PISTON (STD)
10
13312-MN5-003
Подшипник опорный
11
13313-MKC-A01
BEARING A, CRANKSHAFT (BLUE)
11
13314-MKC-A01
BEARING B, CRANKSHAFT (BLACK)
11
13315-MKC-A01
BEARING C, CRANKSHAFT (BROWN)
11
13316-MKC-A01
BEARING D, CRANKSHAFT (GREEN)
11
13317-MKC-A01
BEARING E, CRANKSHAFT (YELLOW)
12
90701-MCA-010
KEY (2X2X30)
13
94303-03050
PIN, DOWEL (3X5)
14
94601-17000
CLIP, PISTON PIN (17MM)
2
13016-MKC-A00
RING SET, L. PISTON (0.25)
2
13015-MKC-A00
RING SET, L. PISTON (STD)
3
13103-MKC-305
PISTON, R. (0.25)
3
13101-MKC-A00
Поршень
4
13107-MKC-305
PISTON, L. (0.25)
4
13102-MKC-A00
Поршень
5
13111-MKC-A00
Палец поршня
5
13111-KCZ-000
Палец поршня
6
13210-MKC-A00
ROD ASSY., CONNECTING
7
13213-MKC-A01
Болт шатуна
8
13214-MKC-A01
BEARING A, CONNECTING ROD (BLUE)
8
13215-MKC-A01
BEARING B, CONNECTING ROD (BLACK)
8
13216-MKC-A01
BEARING C, CONNECTING ROD (BROWN)
8
13217-MKC-A01
BEARING D, CONNECTING ROD (GREEN)
8
13218-MKC-A01
BEARING E, CONNECTING ROD (YELLOW)
9
13300-MKC-A00
CRANKSHAFT ASSY.
