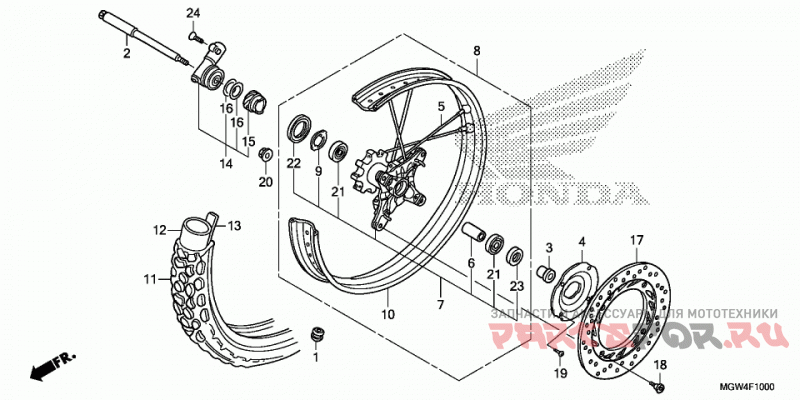

Переднее колесо

Honda (Америка) XR650L

Honda (Америка)
#oem кодцена
1
42717-329-000
Крышка
2
44301-KAE-870
Ось колеса
3
44311-KAE-870
COLLAR, FR. WHEEL
4
44610-MN9-010
COVER, FR. HUB
5
44610-MY6-405
Спицы комплект
6
44620-KAE-870
COLLAR, FR. AXLE DISTANCE
7
44635-MY6-880
HUB SUB-ASSY., FR. WHEEL
8
44650-MY6-316
Диск колеса в сборе
9
44680-MA0-000
RETAINER, GEAR BOX
10
44701-MY6-672
RIM, FR. WHEEL (DAIDO)
11
44711-MY6-675
TIRE, FR. (3.00-21 51S) (DUNLOP)
11
44711-MY6-676
TIRE, FR. (3.00-21 51S) (BS)
12
44712-446-003
TUBE, TIRE (DUNLOP) (NOT AVAILABLE)
12
44712-340-003
TUBE, TIRE (2.75/3.50-21)
12
0Y400-33100
TUBE (275/325-21)
12
44712-437-971
TUBE (275/300X21)
12
08400-33100
TUBE, TIRE (275/300-2)
12
44712-446-631
TUBE, FR. WHEEL (2.75/3.00-21) (BS)
12
44712-MC4-005
TUBE, TIRE (2.75/3.00-21)
12
08400-34010
TUBE, TIRE (2.75/3.00-21) (BS) (NOT AVAILABLE)
12
44712-400-014
TUBE, TIRE (DUNLOP)
13
44713-329-003
FLAP, TIRE (1.60-21) (BS) (NA USE ALT:44713-MG7-003)
13
44713-400-004
FLAP, TIRE (1.40/1.60-21) (DUNLOP)
14
44800-MY6-771
BOX ASSY., SPEEDOMETER GEAR
15
44806-MY6-771
GEAR, SPEEDOMETER (24T)
16
44809-402-000
WASHER, SPEEDOMETER GEAR
17
45351-MN9-020
Диск тормозной перед.
18
90105-ML0-730
BOLT, RR. DISK (8X24) (FR.)
19
90204-MM9-000
SCREW, OVAL (4X10)
20
90309-MR1-770
Гайка
21
91065-KA3-832
BEARING, RADIAL BALL (6003-SH2)
22
91258-410-013
DUST SEAL (40X50X5) (ARAI)
23
91259-KS6-831
DUST SEAL (24X37X7) (NOK)
24
93700-05020-0G
SCREW, OVAL (5X20)
