Валансирный вал для мотоциклов Honda (Америка) VT1300CX (2019)

Москва и регионы России

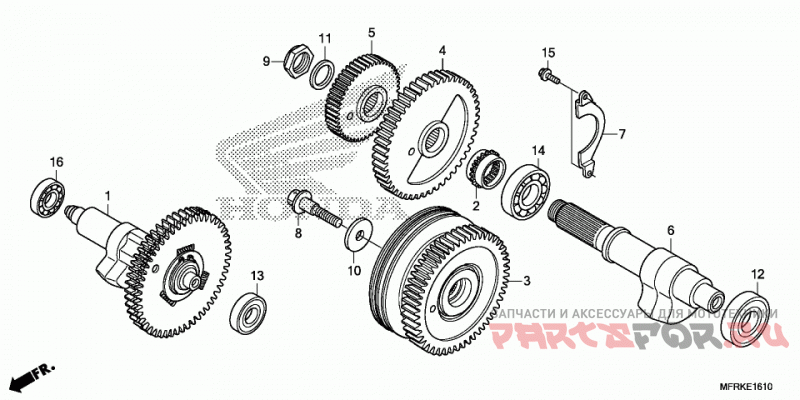

Валансирный вал

Honda (Америка) VT1300CX

Валансирный вал

#

oem код

название

цена

1

SHAFT ASSY., FR. BALANCER (47T)

SHAFT ASSY., FR. BALANCER (47T)

2

SPROCKET, OIL PUMP DRIVE (24T)

SPROCKET, OIL PUMP DRIVE (24T)

3

DAMPER ASSY., PRIMARY (47T)

DAMPER ASSY., PRIMARY (47T)

4

GEAR A, PRIMARY DRIVEN (47T)

GEAR A, PRIMARY DRIVEN (47T)

5

GEAR B, PRIMARY DRIVE (31T)

GEAR B, PRIMARY DRIVE (31T)

6

SHAFT, RR. BALANCER

SHAFT, RR. BALANCER

7

PLATE B, BEARING SETTING

PLATE B, BEARING SETTING

8

Болт (12x45)

Болт (12x45)

9

Гайка (25mm)

Гайка (25mm)

10

WASHER (12.2X40X5)

WASHER (12.2X40X5)

11

WASHER, SPRING (25MM)

WASHER, SPRING (25MM)

12

BEARING, RADIAL BALL (63/22U) (KOYO)

BEARING, RADIAL BALL (63/22U) (KOYO)

13

BEARING, RADIAL BALL (6204U SPL.) (KOYO)

BEARING, RADIAL BALL (6204U SPL.) (KOYO)

14

BEARING, RADIAL BALL (6305U)

BEARING, RADIAL BALL (6305U)

15

Болт (6x16)

Болт (6x16)

16

BEARING, RADIAL BALL (6204)

BEARING, RADIAL BALL (6204)
