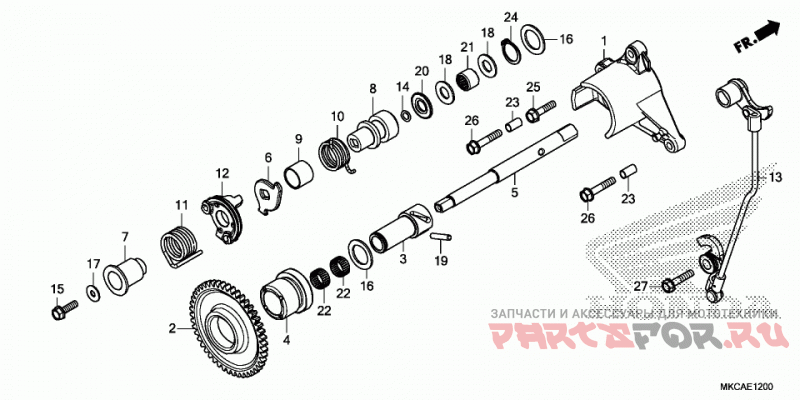

Задняя передача

Honda (Америка) GL1800D

Honda (Америка)
#oem кодцена
1
28150-MKC-A20
HOLDER, REVERS DRIVE GEAR
2
28162-MN5-000
GEAR, REVERSE IDLE (46T)
3
28165-MN5-000
SHIFTER, REVERSE
4
28171-MN5-000
GEAR, REVERSE SHIFT (18T)
5
28211-MKC-A20
SHAFT, REVERSE SHIFTER
6
28215-MCA-000
PLATE, LOST MOTION
7
28218-MCA-000
COLLAR, LOST MOTION SPRING
8
28219-MKC-A20
COLLAR, REVERSE LEVER SPRING
9
28221-MN5-000
BUSH, REVERSE SPRING
10
28224-MKC-A20
SPRING, REVERSE LEVER
11
28226-MCA-000
SPRING, LOST MOTION
12
28241-MCA-A00
DRUM A
13
28250-MKC-A20
ARM, SHIFT DRUM LOCK
14
51996-SA5-800
Колечко
15
90014-MN5-000
Болт (6x20)
16
90409-ML4-610
WASHER B, THRUST (30X1.7)
17
90485-VM0-000
Шайба (6mm)
18
90492-MN5-000
WASHER (12.2X23X1.6)
19
90702-MN5-000
ROLLER (5X25)
20
91001-147-006
BEARING, NEEDLE (12MM) (THOMPSON)
21
91024-GJ5-003
BEARING, NEEDLE (12X16X10)
22
91051-727-000
BEARING, NEEDLE (20X24X17)
23
94301-08140
Направляющая (8х14)
24
94510-20000
CIRCLIP (OUTER) (20MM)
25
95701-06025-00
Болт (6x25)
26
95701-06032-00
Болт (6х32)
27
95801-06028-00
Болт (6x28)
