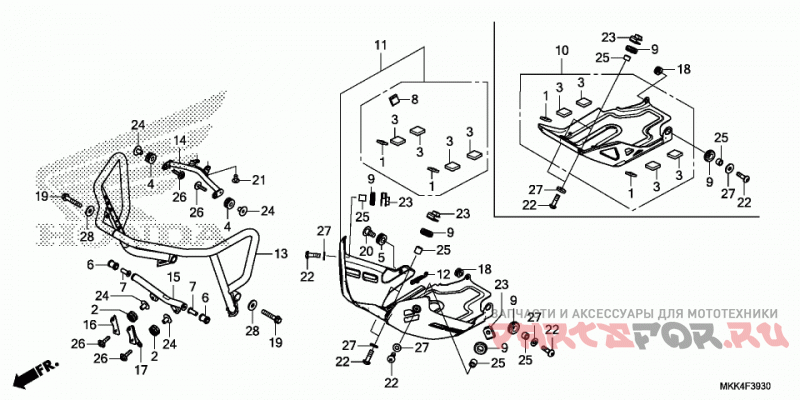

Front side pipe@skid
Honda (Америка) CRF1000A 2AC
| # | oem код | название | цена |
|---|---|---|---|
1 | 17225-MAH-610 RUBBER B, CUSHION | RUBBER B, CUSHION | |
10 | 64440-MJP-G60 PLATE, SKID | PLATE, SKID | |
18 | 80101-283-000 RUBBER, RR. FENDER CUSHION | RUBBER, RR. FENDER CUSHION | |
22 | 90128-KL4-000 BOLT, SPROCKET FIXING | BOLT, SPROCKET FIXING | |
23 | 90321-MJP-G60 NUT, CLIP (8MM) | NUT, CLIP (8MM) | |
25 | 90512-MJP-G60 COLLAR (8.5X14X9) | COLLAR (8.5X14X9) | |
27 | 94101-08000 Шайба (8mm) | Шайба (8mm) | |
3 | 17515-KFB-840 RUBBER, TANK GUARD | RUBBER, TANK GUARD | |
9 | 52491-MCA-000 GROMMET, MOTOR MOUNTING | GROMMET, MOTOR MOUNTING |
