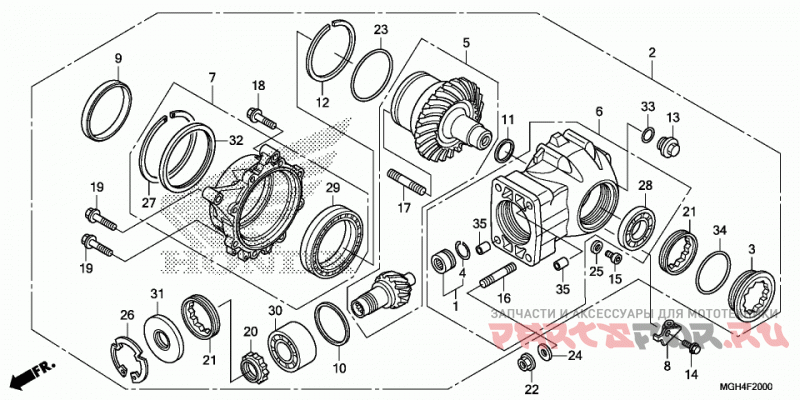

Редуктор

Honda (Америка) VFR1200X

Honda (Америка)
#oem кодцена
1
06910-MCA-000
BEARING SET, NEEDLE
2
41300-MGH-640
GEAR ASSY., FINAL
2
41300-MGH-D20
GEAR ASSY., FINAL
3
41302-MGE-020
BOLT, GEAR CASE
4
41305-MB4-770
Стопорное кольцо
5
41310-MGE-000
GEAR SET, FINAL
6
41311-MGH-640
CASE SUB-ASSY., FINAL GEAR
7
41320-MGH-640
COVER SUB-ASSY., FINAL GEAR
7
41320-MGH-D20
COVER SUB-ASSY., FINAL GEAR
8
41352-MGE-010
STAY, FINAL GEAR COVER
9
41440-MGH-640
COLLAR, GEARSHAFT
10
41450-MGE-000
SHIM A, PINION GEAR (1.32)
10
41451-MGE-000
SHIM B, PINION GEAR (1.38)
10
41452-MGE-000
SHIM C, PINION GEAR (1.44)
10
41453-MGE-000
SHIM D, PINION GEAR (1.50)
10
41454-MGE-000
SHIM E, PINION GEAR (1.56)
10
41455-MGE-000
SHIM F, PINION GEAR (1.62)
10
41456-MGE-000
SHIM G, PINION GEAR (1.68)
11
41505-MGE-000
SHIM Q, RING GEAR (1.58)
11
41506-MGE-000
SHIM R, RING GEAR (1.61)
11
41507-MGE-000
SHIM S, RING GEAR (1.64)
11
41508-MGE-000
SHIM T, RING GEAR (1.67)
11
41509-MGE-000
SHIM U, RING GEAR (1.70)
11
41510-MGE-000
SHIM A, RING GEAR (1.73)
11
41511-MGE-000
SHIM B, RING GEAR (1.76)
11
41512-MGE-000
SHIM C, RING GEAR (1.79)
11
41513-MGE-000
SHIM D, RING GEAR (1.82)
11
41514-MGE-000
SHIM E, RING GEAR (1.85)
11
41515-MGE-000
SHIM F, RING GEAR (1.88)
11
41516-MGE-000
SHIM G, RING GEAR (1.91)
11
41517-MGE-000
SHIM H, RING GEAR (1.94)
11
41518-MGE-000
SHIM I, RING GEAR (1.97)
11
41519-MGE-000
SHIM J, RING GEAR (2.00)
11
41520-MGE-000
SHIM K, RING GEAR (2.03)
11
41521-MGE-000
SHIM L, RING GEAR (2.06)
11
41522-MGE-000
SHIM M, RING GEAR (2.09)
11
41523-MGE-000
SHIM N, RING GEAR (2.12)
11
41524-MGE-000
SHIM O, RING GEAR (2.15)
11
41525-MGE-000
SHIM P, RING GEAR (0.45)
12
41530-MCA-000
SHIM A, RING GEAR (1.82)
12
41531-MCA-000
SHIM B, RING GEAR (1.88)
12
41532-MCA-000
SHIM C, RING GEAR (1.94)
12
41533-MCA-000
SHIM D, RING GEAR (2.00)
12
41534-MCA-000
SHIM E, RING GEAR (2.06)
12
41535-MCA-000
SHIM F, RING GEAR (2.12)
12
41536-MCA-000
SHIM G, RING GEAR (2.18)
12
41537-MCA-000
SHIM H, RING GEAR (2.24)
12
41538-MCA-000
SHIM I, RING GEAR (2.30)
12
41539-MCA-000
SHIM J, RING GEAR (2.36)
12
41540-MCA-000
SHIM K, RING GEAR (2.42)
12
41541-MCA-000
SHIM L, RING GEAR (2.48)
12
41542-MCA-000
SHIM M, RING GEAR (2.54)
12
41543-MCA-000
SHIM N, RING GEAR (2.60)
12
41545-MCA-000
SHIM Q, RING GEAR (1.64)
12
41546-MCA-000
SHIM R, RING GEAR (1.70)
12
41547-MCA-000
SHIM S, RING GEAR (1.76)
13
41530-MGE-000
CAP, FINAL GEAR CASE HOLE
14
90013-GHB-610
Болт (6x12)
15
90109-ME5-770
BOLT, SOCKET (8X11)
16
90124-MGE-300
BOLT, STUD (12X48)
17
90125-MCA-300
BOLT, STUD (12X46)
18
90133-MCA-000
Болт (8x30)
19
90134-MGE-000
Болт (10x35)
20
90241-MCH-000
Гайка (35mm)
21
90242-MCH-000
NUT, LOCK (75MM)
22
90309-375-003
Гайка (12mm)
23
90351-MCA-003
Уплотнительное кольцо
24
90440-GT4-970
Шайба (12mm)
25
90471-580-000
Прокладка
26
90653-MGE-000
Стопорное кольцо
27
90655-MGE-000
CIRCLIP (INNER) (124.5MM)
28
91002-KCW-J11
BEARING, RADIAL BALL SPECIAL SPL (6207)
29
91051-MCA-003
BEARING, RADIAL BALL (100X125X26)
30
91052-MGE-003
BEARING, RADIAL BALL (DE07)
31
91261-MGE-003
OIL SEAL (32X77X6)
32
91265-MGE-013
OIL SEAL (110X124X7)
33
91352-MGE-003
O-RING (21.5X2.9)
34
91353-MGE-003
O-RING (76.5X2)
35
94301-14200
Дюбель (14х20)
