Shift drum@shift fork для мотоциклов Honda (Америка) GL1800B (2017)

Москва и регионы России

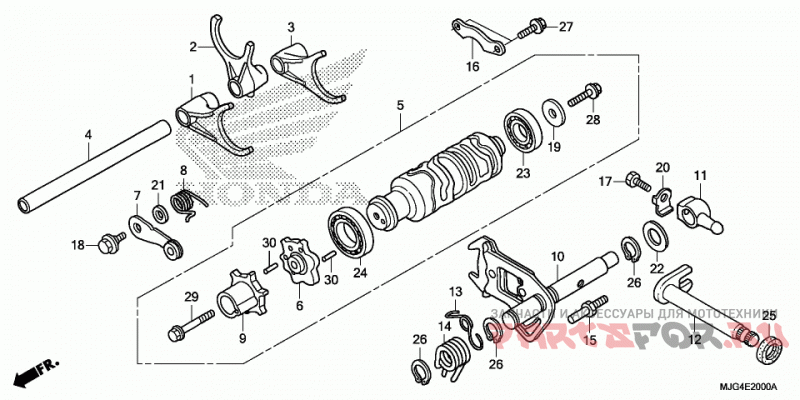

Shift drum@shift fork

Honda (Америка) GL1800B

Shift drum@shift fork

#

oem код

название

цена

1

FORK, FR. GEARSHIFT

FORK, FR. GEARSHIFT

2

FORK, CENTER GEARSHIFT

FORK, CENTER GEARSHIFT

2

FORK, CENTER GEARSHIFT

FORK, CENTER GEARSHIFT

3

SWINGARM, GEARSHIFT

SWINGARM, GEARSHIFT

4

SHAFT, SHIFT FORK

SHAFT, SHIFT FORK

4

SHAFT, SHIFT FORK

SHAFT, SHIFT FORK

5

DRUM ASSY., GEARSHIFT

DRUM ASSY., GEARSHIFT

5

DRUM ASSY., GEARSHIFT

DRUM ASSY., GEARSHIFT

5

DRUM ASSY., GEARSHIFT

DRUM ASSY., GEARSHIFT

6

CAM, SHIFT DRUM

CAM, SHIFT DRUM

7

STOPPER, GEARSHIFT DRUM

STOPPER, GEARSHIFT DRUM

8

SPRING, GEARSHIFT DRUM STOPPER

SPRING, GEARSHIFT DRUM STOPPER

9

JOINT, GEARSHIFT DRUM

JOINT, GEARSHIFT DRUM

10

Рычаг

Рычаг

11

ARM B, GEARSHIFT

ARM B, GEARSHIFT

12

Шпиндель коробки передач

Шпиндель коробки передач

13

SPRING, GEARSHIFT RESET

SPRING, GEARSHIFT RESET

14

SPRING, GEARSHIFT RETURN

SPRING, GEARSHIFT RETURN

15

PIN, SHIFT RETURN SPRING

PIN, SHIFT RETURN SPRING

16

PLATE, GEARSHIFT DRUM BEARING SETTING

PLATE, GEARSHIFT DRUM BEARING SETTING

17

BOLT, HEX. (8X17)

BOLT, HEX. (8X17)

18

PIVOT, SHIFT DRUM STOPPER ARM

PIVOT, SHIFT DRUM STOPPER ARM

19

WASHER (6.5X26X2.6)

WASHER (6.5X26X2.6)

20

WASHER, LOCK (8MM)

WASHER, LOCK (8MM)

21

Колечко

Колечко

22

WASHER (14.2X28X2.3)

WASHER (14.2X28X2.3)

23

BEARING, RADIAL BALL (6904) (NTN)

BEARING, RADIAL BALL (6904) (NTN)

24

BEARING, BALL (16005) (NTN)

BEARING, BALL (16005) (NTN)

25

OIL SEAL (14X28X7) (ARAI)

OIL SEAL (14X28X7) (ARAI)

26

CIRCLIP, OUTER (14MM)

CIRCLIP, OUTER (14MM)

27

Болт (6x16)

Болт (6x16)

28

Болт (6x22)

Болт (6x22)

29

Болт (8x40)

Болт (8x40)

30

ROLLER (4X14.8)

ROLLER (4X14.8)
