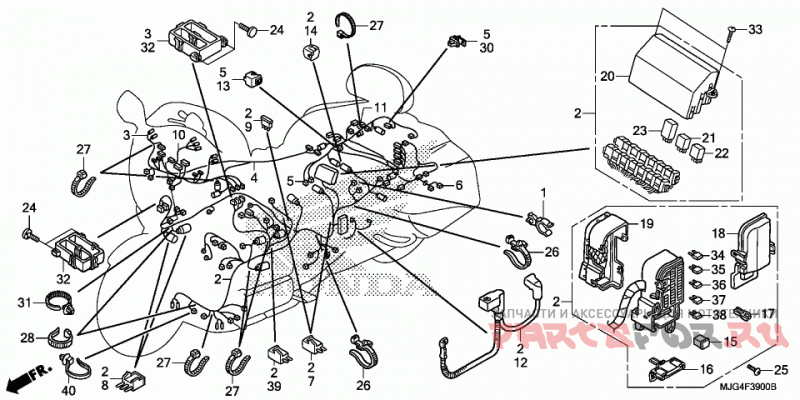

Жгут проводов

Honda (Америка) GL1800B

Honda (Америка)
#oem кодцена
1
11338-KJ9-751
Зажим
2
32100-MJG-670
Провода
2
32100-MJG-770
Провода
2
32100-MJG-L10
Провода
2
32100-MJG-A10
Провода
3
32105-MJG-670
SUB-HARNESS, FAIRING
3
32105-MJG-770
SUB-HARNESS, FAIRING
3
32105-MJG-L10
SUB-HARNESS, FAIRING
3
32105-MJG-A10
SUB-HARNESS, FAIRING
4
32119-MJG-670
SUB-HARNESS, AUDIO
5
32120-MJG-670
Проводка
6
32130-MJG-670
SUB-HARNESS, L. SADDLEBAG
7
32146-S84-003
CONNECTOR, DIODE (2P) (3A)
8
32146-SJ4-003
DIODE (3P)
9
32147-SF1-003
CONNECTOR, DIODE (3P)
10
32160-MJG-770
SUB-HARNESS, GRIP HEATER
10
32160-MJG-L10
SUB-HARNESS, GRIP HEATER
11
32180-MCA-S40
SUB-HARNESS, R. SADDLEBAG
12
32401-MCA-S40
CABLE, STARTER BATTERY
13
32605-GEV-761
CAP, DUMMY (WPC 4P 090 M) (NATURAL)
14
32606-GEV-761
CAP, DUMMY (4P) (RED)
15
38211-SNA-A11
FUSE, BLOCK (30A)
16
38231-SFE-J01
FUSE A, MULTI BLOCK (120A/40A)
17
38235-S04-003
PULLER, MINI FUSE (SUMITOMO)
18
38252-MCA-A61
Крышка верхняя
19
38256-MCA-A61
COVER (LOWER)
20
38282-MCA-003
Крышка верхняя
21
38501-MCA-A61
RELAY ASSY., POWER (MICRO ISO 4P)
22
38502-MCA-A61
RELAY ASSY., POWER (MICRO ISO 5P)
23
38503-MCA-A61
RELAY, POWER (MICRO ISO 4P)
24
90101-TF6-003
BOLT, WELDING (5X16)
25
90114-KFK-000
SCREW, SPECIAL (5X12)
26
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL)
27
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
28
90652-KT1-771
BAND, WIRE (BLACK)
30
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
31
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
32
91571-SR3-003
Держатель
33
93903-25380
SCREW, TAPPING (5X16)
33
90113-MJK-N20
SCREW, TAPPING (5X16)
34
98200-40500
FUSE, MINI (5A)
35
98200-41000
Предохранитель Mini (10А)
36
98200-41500
Предохранитель Mini (15A)
37
98200-42000
Предохранитель Mini (20А)
38
98200-43000
Предохранитель Mini (30А)
39
32146-S84-003
CONNECTOR, DIODE (2P) (3A)
40
91540-TA0-003
CLIP, HARNESS BAND (100.1MM) (NATURAL)
