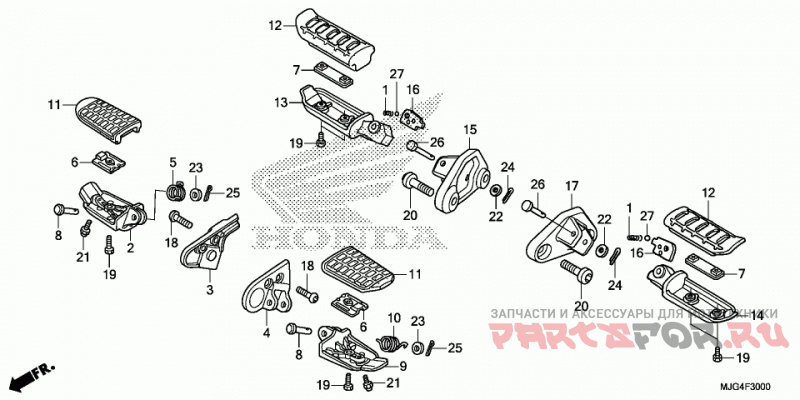

Подножки

Honda (Америка) GL1800B

Honda (Америка)
#oem кодцена
1
28333-300-000
SPRING, KICK STARTER STOPPER
2
50612-MCA-305
ARM, R. STEP (COO)
3
50613-MCA-S40ZC
BRACKET, R. MAIN STEP *NHA86M* (MAT BALLISTIC BLACK)
4
50614-MCA-S40ZC
BRACKET, L. MAIN STEP *NHA86M* (MAT BALLISTIC BLACK)
5
50617-MM5-000
SPRING, R. STEP RETURN
6
50619-MCA-000
PLATE, STEP SETTING
7
50619-MT3-000
PLATE, STEP SETTING
8
50639-ML0-010
Палец
9
50642-MCA-305
ARM, L. STEP (COO)
10
50644-MM5-000
SPRING, L. STEP RETURN
11
50661-MCA-305
RUBBER, MAIN STEP (COO)
12
50661-MT3-305
RUBBER, STEP
13
50711-MT3-305
BAR, R. PILLION STEP
14
50712-MT3-305
BAR, L. PILLION STEP
15
50715-MJG-670ZB
HOLDER, R. PILLION STEP *NHA86M* (MAT BALLISTIC BLACK)
16
50718-MT3-000
PLATE, PILLION STEP CLICK
17
50815-MJG-670ZB
HOLDER, L. PILLION STEP *NHA86M* (MAT BALLISTIC BLACK)
18
90100-GCT-J50
Болт (8x22)
19
90115-MT3-000
BOLT, MAIN STEP RUBBER SETTING
20
90155-MBL-610
Болт (8x32)
21
92501-06012-0A
BOLT, CAP (6X12)
22
94101-06080
Шайба (6mm)
22
94101-06800
Шайба (6mm)
23
94101-08000
Шайба (8mm)
24
94201-16120
Палец (1.6x12)
25
94201-20150
Шплинт (2.0x15)
26
95015-83000
Палец
27
96211-08000
BALL, STEEL (#8) (1/4)
