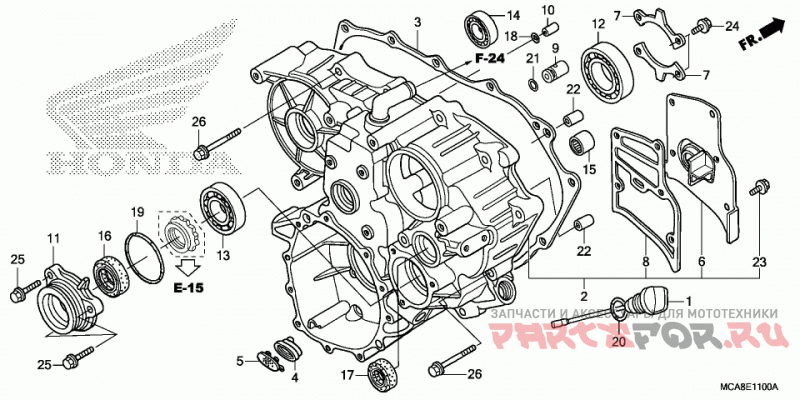

Задний кожух картера

Honda (Америка) GL1800

Honda (Америка)
#oem кодцена
1
15650-MCA-010
Крышка масленной горловины
2
21100-MCA-S40
CASE ASSY., RR.
2
21100-MJK-A80
CASE ASSY., RR.
3
21112-MCA-010
GASKET, RR. CASE
4
21116-MCA-780
BODY, SCAVENGE OIL PUMP STRAINER
5
21117-MCA-780
CAP, SCAVENGE OIL PUMP STRAINER
6
21120-MEC-000
Пластина сапуна
7
21122-MN5-000
PLATE, PRIMARY BEARING SETTING
8
21125-MEC-003
GASKET, BREATHER PLATE
9
22360-MEC-000
VALVE ASSY., CLUTCH REGULATOR
10
22465-MCA-000
ORIFICE, CLUTCH CONTROL
11
23751-MN5-000
HOLDER, FINAL SHAFT BEARING
12
91002-MN5-003
BEARING, RADIAL BALL (6010) (NTN)
13
91006-MT3-003
BEARING, RADIAL BALL (6206) (NTN)
14
91015-MCA-003
BEARING, RADIAL BALL (6905)
15
91024-GJ5-003
BEARING, NEEDLE (12X16X10)
16
91204-MN5-005
OIL SEAL (28X48X9) (NOK)
17
91208-MN5-003
OIL SEAL (27X34X5)
18
91304-MC7-003
O-RING B (6.8X2.5) (ARAI)
19
91316-PT6-003
O-RING (63X3) (ARAI)
19
91316-PE7-730
O-RING (62.4X3.1)
20
91307-035-000
Кольцо (18x3)
21
91313-MG7-004
O-RING (14.7X2.2) (ARAI)
22
94301-10160
Палец (10x16)
23
95701-06012-00
Болт (6x12)
24
95701-06016-00
Болт (6x16)
25
95701-08028-00
Болт (8x28)
26
95701-08045-00
Болт (8x45)
