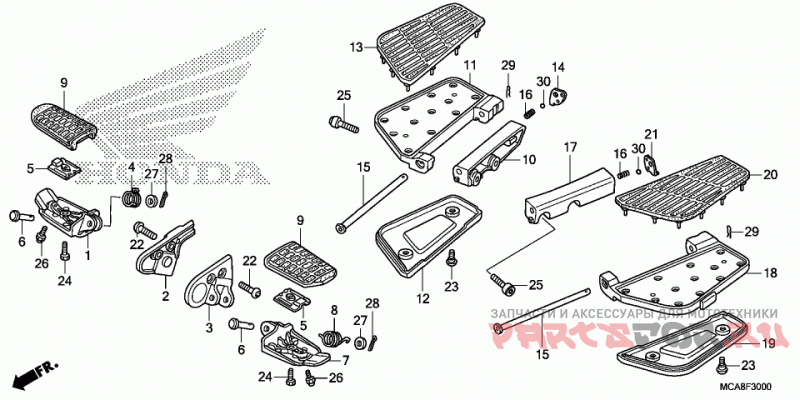

Подножки

Honda (Америка) GL1800

Honda (Америка)
#oem кодцена
1
50612-MCA-305
ARM, R. STEP (COO)
2
50613-MCA-S40ZA
BRACKET, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)
2
50613-MCA-S40ZC
BRACKET, R. MAIN STEP *NHA86M* (MAT BALLISTIC BLACK)
3
50614-MCA-S40ZA
BRACKET, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)
3
50614-MCA-S40ZC
BRACKET, L. MAIN STEP *NHA86M* (MAT BALLISTIC BLACK)
4
50617-MM5-000
SPRING, R. STEP RETURN
5
50619-MCA-000
PLATE, STEP SETTING
6
50639-ML0-010
Палец
7
50642-MCA-305
ARM, L. STEP (COO)
8
50644-MM5-000
SPRING, L. STEP RETURN
9
50661-MCA-305
RUBBER, MAIN STEP (COO)
10
50715-MCA-000
HOLDER, R. PILLION STEP
11
50716-MCA-305
PLATE, R. PILLION STEP (COO)
12
50717-MCA-000ZB
COVER, R. PILLION STEP (LOWER) *NH146M* (ACCURATE SILVER METALLIC)
12
50717-MCA-000ZC
COVER, R. PILLION STEP (LOWER) *NHA86M* (MAT BALLISTIC BLACK)
13
50718-MCA-000
RUBBER, R. PILLION STEP
14
50720-MT8-770
PLATE, R. PILLION STEP CLICK
15
50721-MCA-A00
PIN, PILLION STEP
16
50746-MT8-770
SPRING, PILLION STEP ADJUST CLICK
17
50815-MCA-000
HOLDER, L. PILLION STEP
18
50816-MCA-305
PLATE, L. PILLION STEP (COO)
19
50817-MCA-000ZB
COVER, L. PILLION STEP (LOWER) *NH146M* (ACCURATE SILVER METALLIC)
19
50817-MCA-000ZC
COVER, L. PILLION STEP (LOWER) *NHA86M* (MAT BALLISTIC BLACK)
20
50818-MCA-000
RUBBER, L. PILLION STEP
21
50820-MT8-770
PLATE, L. PILLION STEP CLICK
22
90100-GCT-J50
Болт (8x22)
23
90106-MBY-000
SCREW, SPECIAL (5X12)
24
90115-MT3-000
BOLT, MAIN STEP RUBBER SETTING
25
90155-MBL-610
Болт (8x32)
26
92501-06012-0A
BOLT, CAP (6X12)
27
94101-08000
Шайба (8mm)
28
94201-20150
Шплинт (2.0x15)
29
94251-08000
PIN, LOCK (8MM)
30
96211-08000
BALL, STEEL (#8) (1/4)
