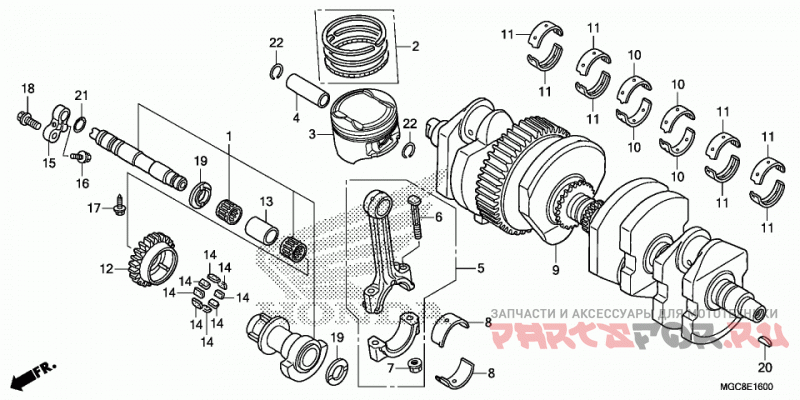

Коленчатый вал и поршни

Honda (Америка) CB1100CA

Honda (Америка)
#oem кодцена
1
06130-MGC-305
BALANCER SET
2
13011-MGC-000
Кольца порщневые (Стд.)
2
13021-MGC-000
RING SET, PISTON (0.25)
3
13101-MGC-000
Поршень
3
13102-MGC-000
Поршень (0.25)
4
13111-KCZ-000
Палец поршня
5
13210-MGC-000
ROD ASSY., CONNECTING
6
13213-MAT-003
Болт шатуна
7
13215-ML7-000
Гайка
8
13224-MGC-003
BEARING A, CONNECTING ROD (BROWN)
8
13225-MGC-003
BEARING B, CONNECTING ROD (GREEN)
8
13226-MGC-003
BEARING C, CONNECTING ROD (YELLOW)
9
13300-MGC-N20
Коленчатый вал
10
13311-MM5-003
BEARING A, MAIN (14MM) (BROWN)
10
13312-MM5-003
BEARING B, MAIN (14MM) (GREEN)
10
13313-MM5-003
BEARING C, MAIN (14MM) (YELLOW)
10
13314-MM5-003
BEARING D, MAIN (14MM) (PINK)
11
13315-MJ0-010
BEARING A, MAIN (17MM) (GREEN)
11
13316-MJ0-010
BEARING B, MAIN (17MM) (YELLOW)
11
13317-MJ0-010
BEARING C, MAIN (17MM) (PINK)
11
13318-MM5-004
BEARING D, MAIN (17MM) (BROWN)
12
13421-MGC-N21
GEAR, BALANCER (23T)
13
13433-MM5-000
Втулка
14
13435-MM5-000
Демпфер резиновый
15
13436-MM5-000
HOLDER, BALANCER SHAFT
16
90002-MCZ-000
Болт (6x18)
17
90004-MM5-000
Болт (6x18)
18
90022-MFA-D00
Болт (8x25)
19
90457-MM5-000
WASHER A, BALANCER SIDE
20
90741-MAZ-000
KEY, SPECIAL WOODRUFF (25X14)
21
91306-329-000
O-RING (16X1.9)
22
94601-17000
CLIP, PISTON PIN (17MM)
