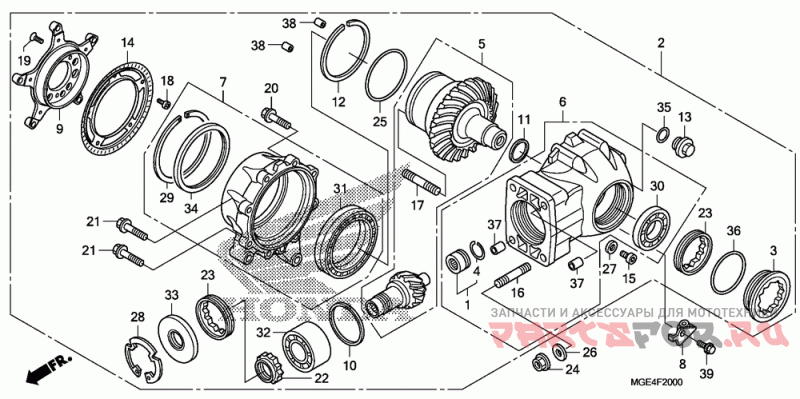

Редуктор

Honda (Америка) VFR1200F

Honda (Америка)
#oem кодцена
01
06910-MCA-000
Bearing Set, Needle
02
41300-MGE-040
Gear Assy., Final
03
41302-MGE-020
Bolt, Gear Case
04
41305-MB4-770
Стопорное кольцо
05
41310-MGE-000
Gear Set, Final
06
41311-MGE-010
Case Sub-assy.
07
41320-MGE-010
Cvr Sub, Final Gear
08
41352-MGE-010
Опора
09
41441-MGE-000
Flange
10
41450-MGE-000
Shim A (1.32)
10
41451-MGE-000
Shim B (1.38)
10
41452-MGE-000
Shim C (1.44)
10
41453-MGE-000
Shim D (1.50)
10
41454-MGE-000
Shim E (1.56)
10
41455-MGE-000
Shim F (1.62)
10
41456-MGE-000
Shim G (1.68)
11
41505-MGE-000
Shim Q (1.58)
11
41506-MGE-000
Shim R (1.61)
11
41507-MGE-000
Shim S (1.64)
11
41508-MGE-000
Shim T (1.67)
11
41509-MGE-000
Shim U (1.70)
11
41510-MGE-000
Shim A (1.73)
11
41511-MGE-000
Shim B (1.76)
11
41512-MGE-000
Shim C (1.79)
11
41513-MGE-000
Shim D (1.82)
11
41514-MGE-000
Shim E (1.85)
11
41515-MGE-000
Shim F (1.88)
11
41516-MGE-000
Shim G (1.91)
11
41517-MGE-000
Shim H (1.94)
11
41518-MGE-000
Shim I (1.97)
11
41519-MGE-000
Shim J (2.00)
11
41520-MGE-000
Shim K (2.03)
11
41521-MGE-000
Shim L (2.06)
11
41522-MGE-000
Shim M (2.09)
11
41523-MGE-000
Shim N (2.12)
11
41524-MGE-000
Shim O (2.15)
11
41525-MGE-000
Shim P (0.45)
12
41530-MCA-000
Shim A (1.82)
12
41531-MCA-000
Shim B (1.88)
12
41532-MCA-000
Shim C (1.94)
12
41533-MCA-000
Shim D (2.00)
12
41534-MCA-000
Shim E (2.06)
12
41535-MCA-000
Shim F (2.12)
12
41536-MCA-000
Shim G (2.18)
12
41537-MCA-000
Shim H (2.24)
12
41538-MCA-000
Shim I (2.30)
12
41539-MCA-000
Shim J (2.36)
12
41540-MCA-000
Shim K (2.42)
12
41541-MCA-000
Shim L (2.48)
12
41542-MCA-000
Shim M (2.54)
12
41543-MCA-000
Shim N (2.60)
12
41545-MCA-000
Shim Q (1.64)
12
41546-MCA-000
Shim R (1.70)
12
41547-MCA-000
Shim S (1.76)
13
41530-MGE-000
Крышка
14
42515-MGE-000
Ring, Rr. Pulser
15
90109-ME5-770
Bolt, Socket (8x11)
16
90124-MGE-300
Bolt, Stud (12x48)
17
90125-MCA-300
Bolt, Stud (12x46)
18
90131-MGE-000
Bolt, Torx (5x8)
19
90132-MCA-000
Винт (6x16)
20
90133-MCA-000
Болт (8x30)
21
90134-MGE-000
Болт (10x35)
22
90241-MCH-000
Гайка (35mm)
23
90242-MCH-000
Nut, Lock (75mm)
24
90309-375-003
Гайка (12mm)
25
90351-MCA-003
Уплотнительное кольцо
26
90440-GT4-970
Шайба (12mm)
27
90471-580-000
Прокладка
28
90653-MGE-000
Стопорное кольцо
29
90655-MGE-000
Circlip (124.5mm)
30
91002-KCW-J11
Bearing (6207)
31
91051-MCA-003
Bearing (100x125x26)
32
91052-MGE-003
Bearing (de07)
33
91261-MGE-003
Oil Seal (32x77x6)
34
91265-MGE-013
Oil Seal (110x124x7)
35
91352-MGE-003
O-ring (21.5x2.9)
36
91353-MGE-003
O-ring (76.5x2)
37
94301-14200
Дюбель (14х20)
38
94303-10160
Палец (10x16)
39
96001-06012-07
Болт (6x12)
