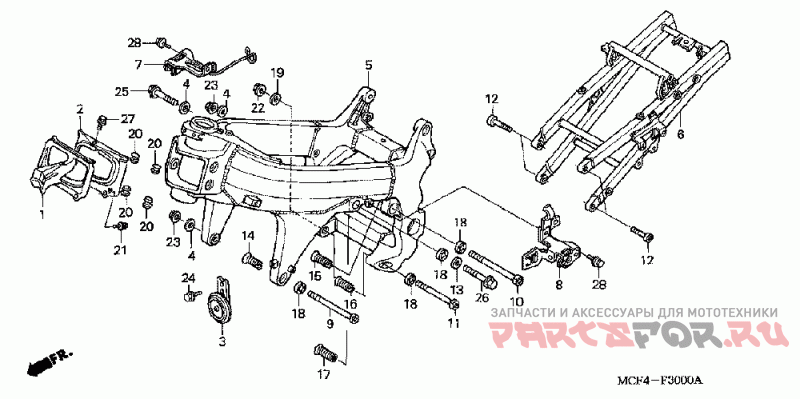

Frame ('00-'01)

Honda (Америка) RVT1000R

Honda (Америка)
#oem кодцена
01
17263-MCF-000
Tube, Fr. Connecting
02
17264-MCF-000
Holder, Fr.
03
38110-GT8-621
Сигнал
04
45224-KV3-951
Washer A, Fr. Disk
05
50100-MCF-A00ZA
Frame *nh377m* (core Black Metallic)
06
50200-MCF-D00
Rail, Seat
07
64515-MCF-D50
Stay B, R. Cowl
08
64516-MCF-D50
Stay B, L. Cowl
09
90102-MCF-000
Bolt (12x280)
10
90103-MCF-000
Bolt (12x294)
11
90104-MCF-000
Bolt, Flg (10x249)
12
90108-MCF-000
Bolt, Torx (10x32)
13
90122-GS3-000
Шайба (12mm)
14
90151-MCF-000
Bolt (20x68.5)
15
90152-MCF-000
Bolt (20x48.5)
16
90153-MCF-000
Bolt (20x48.5)
17
90154-MCF-000
Bolt (20x68.5)
18
90201-MW0-000
Nut, Lock (20mm)
19
90410-KR0-000
Шайба (10mm)
20
90851-MCF-000
Grommet, Air Duct
21
93401-05012-07
Bolt-washer (5x12)
22
94050-10000
Гайка(10mm)
23
94050-12000
Гайка (12mm)
24
95701-06012-07
Болт (6X12)
25
95801-12055-00
Bolt, Flange (12x55)
26
95801-12100-00
Bolt, Flg (12x100)
27
96001-06010-07
Болт (6x10)
28
96001-06014-07
Болт (6x14)
