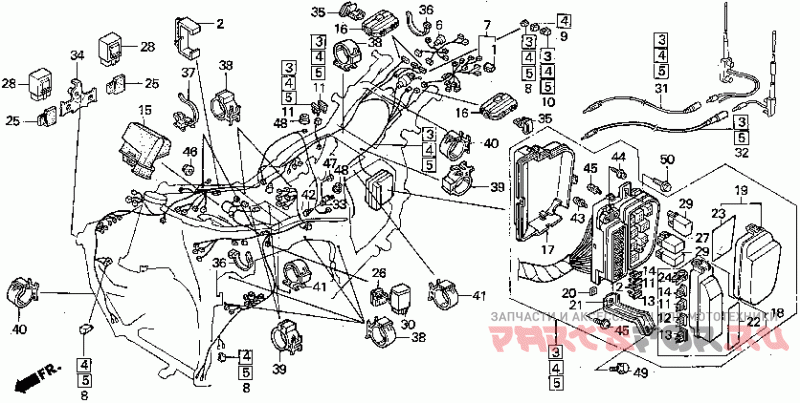

A/se wire harness

Honda (Америка) GL1500A

Honda (Америка)
#oem кодцена
01
31710-371-008
Rectifier, Silicon
02
32012-MT8-000
Holder C, Connector
04
32100-MAM-A80
Провода
06
32101-MT8-000
Sub-harness, R. Rr.
07
32102-MZ3-670
Sub-harness, L. Rr.
08
32136-MN5-003
Cvr, Connector (2p)
09
32137-KB2-003
Cvr, Connector (4p)
10
32138-KB2-003
Cvr, Connector (6p)
11
98200-30500
Fuse, Blade (5a)
12
98200-31000
Fuse, Blade (10a)
13
98200-31500
Fuse, Blade (15a)
15
32814-MN5-010
Cvr, Radio Connector
16
32815-MN5-003
Case (22p)
17
38204-MN5-000
Cover (lower)
18
38205-MAM-A81
Крышка блока предохранителей
19
38206-MZ3-670
Cover, Relay Box
20
38207-MN5-000
Nut, Bracket (5mm)
21
38208-MN5-000
Крепление
22
38215-MZ3-670
Label, Fuse Box
23
38216-MZ3-670
Label, Relay Box
24
38235-SA5-003
Puller, Fuse
26
38306-MG9-680
Подвеска
27
38360-MN5-003
Relay (10a)
29
38370-MN5-003
Relay (20a)
30
38380-MN5-003
Relay (20a)
36
90650-MA6-720
Хомут
37
90690-GHB-661
Зажим (20мм)
38
90690-GHB-641
Clip, Cable (10mm)
39
90690-GHB-651
Clip, Cable (15mm)
41
90690-GHB-671
Clip, Cable (25mm)
43
93893-04008-08
Screw-washer (4x8)
44
93893-04010-08
Винт с шайбой (4x10)
45
93893-05010-08
Винт
46
94001-04000-0S
Гайка (4mm)
48
94050-06080
Гайка (6mm)
49
95701-06008-00
Болт (6x8)
50
95701-06012-08
Болт (6X12)
31
39159-MN5-000
Sub-feeder, Antenna
35
50324-MN5-000
Зажим
