Final gear case для мотоциклов Honda (Америка) CB900C (1982)

Москва и регионы России

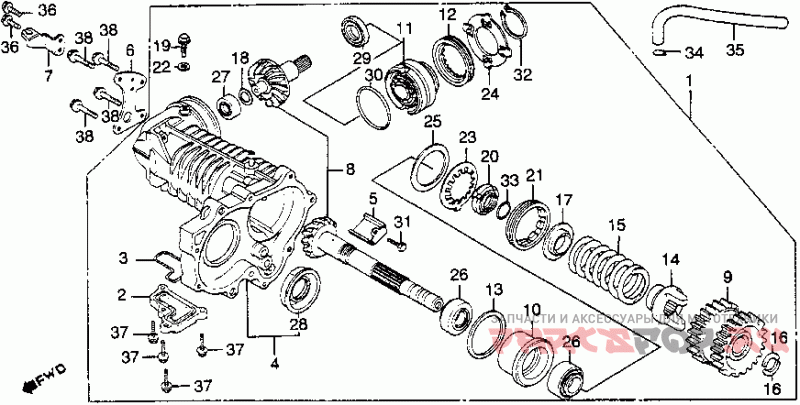

Final gear case

Honda (Америка) CB900C

Final gear case

#

oem код

название

цена

01

Case, Final Gear

Case, Final Gear

02

Cvr, Final Gear Case

Cvr, Final Gear Case

13

Shim G (1.34)

Shim G (1.34)

16

Шайба

Шайба

19

Bolt, Fender (6x18)

Bolt, Fender (6x18)

22

Шайба (6mm)

Шайба (6mm)

26

Рулевой подшипник

Рулевой подшипник

27

Bearing (30203)

Bearing (30203)

30

O-ring (70x3.0)

O-ring (70x3.0)

31

Болт (6X12)

Болт (6X12)

34

Зажим шланга (d12)

Зажим шланга (d12)

35

95005-75001-20M

Bulk Hose (7.3x1000)

Bulk Hose (7.3x1000)

36

Болт (6X12)

Болт (6X12)

37

Болт (6x22)

Болт (6x22)

38

Болт (8x22)

Болт (8x22)

03

O-ring (lower)

O-ring (lower)

04

Case, Final Gear

Case, Final Gear

05

Plate, Baffle

Plate, Baffle

06

Пластина

Пластина

07

Приемник

Приемник

08

Gear Set, Final

Gear Set, Final

09

Gear (31t/28t)

Gear (31t/28t)

10

Retainer A, Bearing

Retainer A, Bearing

11

Bearing Set (30206c)

Bearing Set (30206c)

12

Nut, Lock (78mm)

Nut, Lock (78mm)

13

Shim A (1.10)

Shim A (1.10)

13

Shim B (1.14)

Shim B (1.14)

13

Shim C (1.18)

Shim C (1.18)

13

Shim D (1.22)

Shim D (1.22)

13

Shim E (1.26)

Shim E (1.26)

13

Shim F (1.30)

Shim F (1.30)

13

Shim H (1.38)

Shim H (1.38)

13

Shim I (1.42)

Shim I (1.42)

13

Shim J (1.46)

Shim J (1.46)

13

Shim K (1.50)

Shim K (1.50)

13

Shim L (1.54)

Shim L (1.54)

13

Shim M (1.58)

Shim M (1.58)

13

Shim N (1.62)

Shim N (1.62)

13

Shim O (1.66)

Shim O (1.66)

13

Shim P (1.70)

Shim P (1.70)

13

Shim Q (1.74)

Shim Q (1.74)

13

Shim R (1.78)

Shim R (1.78)

13

Shim S (1.82)

Shim S (1.82)

13

Shim T (1.86)

Shim T (1.86)

13

Shim U (1.90)

Shim U (1.90)

14

Lifter, Damper

Lifter, Damper

15

Spring, Damper

Spring, Damper

17

Seat, Damper Spring

Seat, Damper Spring

18

Shim A (1.10)

Shim A (1.10)

18

Shim B (1.14)

Shim B (1.14)

18

Shim C (1.18)

Shim C (1.18)

18

Shim D (1.22)

Shim D (1.22)

18

Shim E (1.26)

Shim E (1.26)

18

Shim F (1.30)

Shim F (1.30)

18

Shim G (1.34)

Shim G (1.34)

18

Shim H (1.38)

Shim H (1.38)

18

Shim I (1.42)

Shim I (1.42)

18

Shim J (1.46)

Shim J (1.46)

18

Shim K (1.50)

Shim K (1.50)

18

Shim L (1.54)

Shim L (1.54)

18

Shim M (1.58)

Shim M (1.58)

18

Shim N (1.62)

Shim N (1.62)

18

Shim O (1.66)

Shim O (1.66)

18

Shim P (1.70)

Shim P (1.70)

18

Shim Q (1.74)

Shim Q (1.74)

18

Shim R (1.78)

Shim R (1.78)

18

Shim S (1.82)

Shim S (1.82)

18

Shim T (1.86)

Shim T (1.86)

18

Shim U (1.90)

Shim U (1.90)

20

Nut, Lock (30mm)

Nut, Lock (30mm)

21

Nut, Lock (75mm)

Nut, Lock (75mm)

23

Washer, Lock (75mm)

Washer, Lock (75mm)

24

Шайба

Шайба

25

Washer (58mm)

Washer (58mm)

28

Oil Seal (40x62x16)

Oil Seal (40x62x16)

29

Oil Seal (30x45x8)

Oil Seal (30x45x8)

32

Circlip (50mm)

Circlip (50mm)

33

Ring A, Snap (27mm)

Ring A, Snap (27mm)
