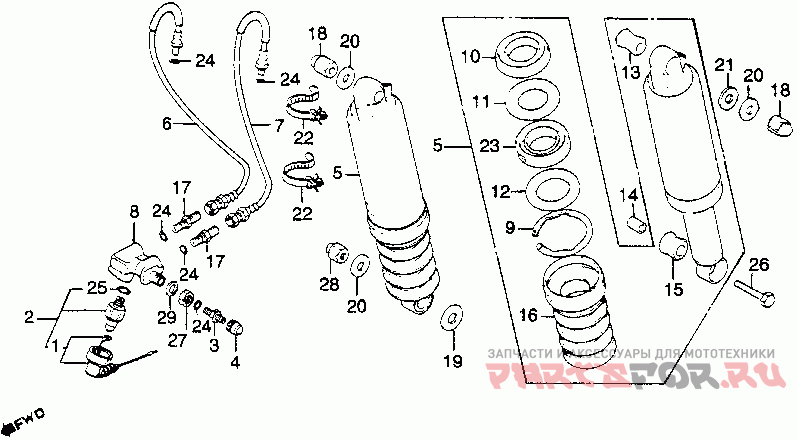

Задний амортизатор

Honda (Америка) CB900C

Honda (Америка)
#oem кодцена
03
51456-469-013
Valve, Air
04
51457-469-000
Cap Assy., Air Valve
09
52447-463-003
Circlip (66mm)
10
52462-463-003
Guide, Damper Case
11
52463-463-003
Ring A, Back-up
12
52464-463-003
Ring B, Back-up
13
52484-292-000
Rubber, Joint
14
52486-463-000
Collar, Rr. Shock
15
52489-399-601
Bush, Rubber (upper)
16
52611-463-013
Boot, Rr. Damper
17
53139-463-000
Штуцер
18
90309-315-000
Гайка(10mm)
19
90439-463-000
Шайба (16mm)
20
90521-292-000
Шайба
21
90527-230-000
Шайба
22
90676-692-000
Band (100mm)
23
91257-463-013
Сальник
24
91305-323-000
O-ring (5.8x1.9)
24
91318-ME5-003
O-ring (5.6x1.9)
25
91301-PC9-003
O-ring (7.7x2.3)
26
93200-10035-0B
Bolt, Hex. (10x35)
27
94002-14080-0S
Nut, Hex. (14mm)
28
94021-10020-0S
Nut, Cap (10mm)
29
94102-14800
Шайба (14mm)
01
32111-463-000
Sub-wire A
02
35510-461-305
Sensor Set, Air
05
52400-461-772
Shock Absorber, Rr.
06
52432-461-003
Hose, R. Rr. Shock
07
52433-461-003
Hose, L. Rr. Shock
08
52434-461-003
Joint (three-way)
