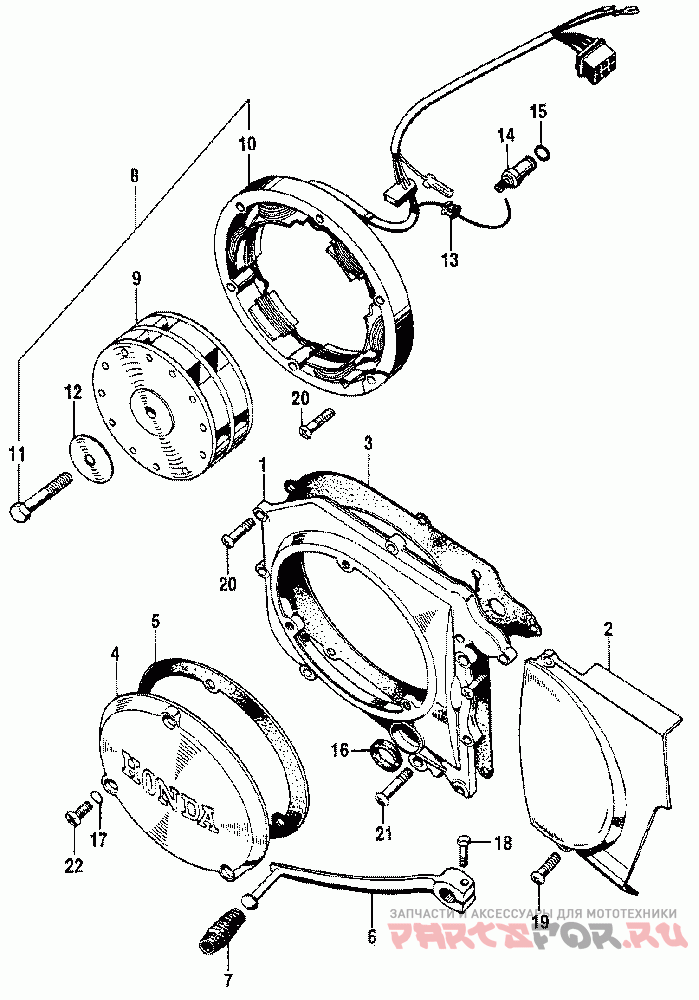

Crankcase cover @ alternator
Honda (Америка) SL90
| # | oem код | название | цена |
|---|---|---|---|
05 | 11691-028-306 Прокладка | Прокладка | |
07 | 95011-40000 Резинка | Резинка | |
11 | 95015-11100 Bolt A1, Rotor | Bolt A1, Rotor | |
14 | 35750-028-000 Contact Assy. | Contact Assy. | |
15 | 37551-001-000 O-ring (7x1.6) | O-ring (7x1.6) | |
16 | 91208-KB4-671 Сальник | Сальник | |
17 | 91301-216-000 O-ring (5.5x1.5) | O-ring (5.5x1.5) | |
18 | 92101-06020-0A Болт (6х20) | Болт (6х20) | |
19 | 93500-06020-0A Винт (6x20) | Винт (6x20) | |
20 | 93500-06025-0A Screw, Pan (6x25) | Screw, Pan (6x25) | |
21 | 93500-06035-0A Screw, Pan (6x35) | Screw, Pan (6x35) |
