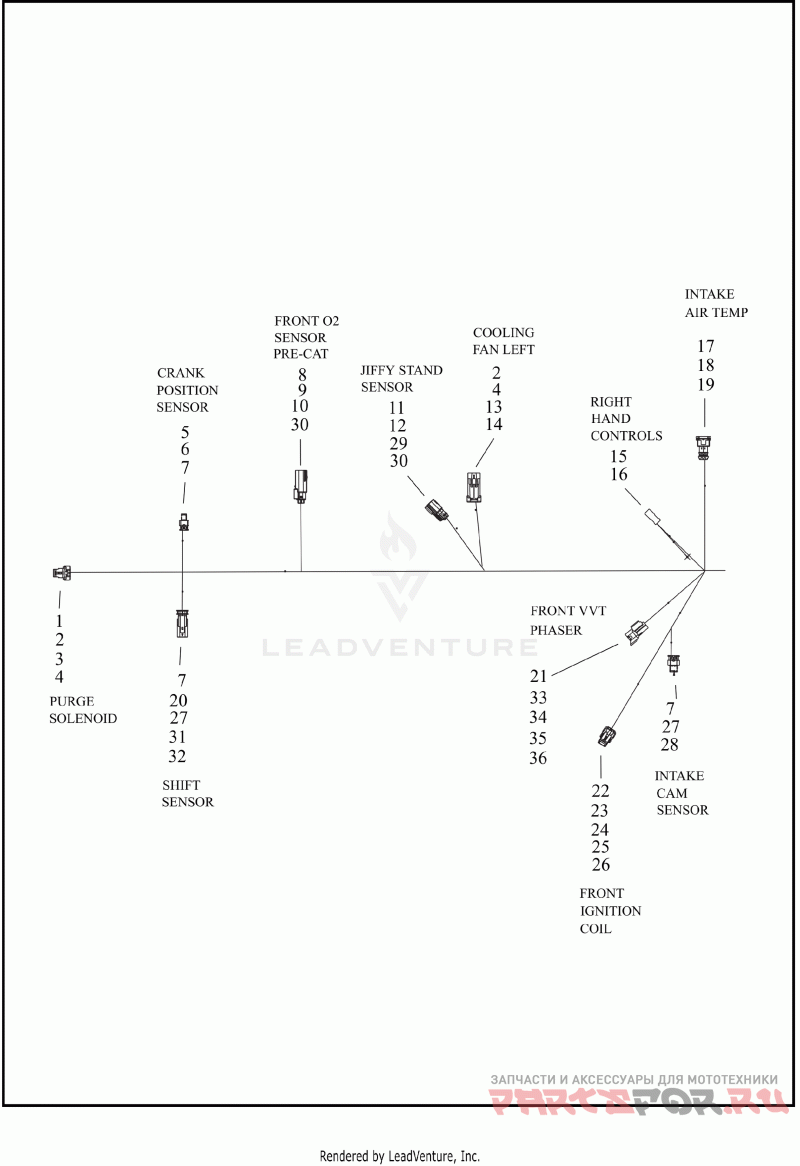

WIRING HARNESS, ENGINE (2 OF 4)

Harley Davidson RH975S 1ZF1 NIGHTSTER SPECIAL (2025)

Harley Davidson
#oem кодцена
69203343
Деталь HARNESS,WIRE,ENGINE
1
72518-01
Деталь HOUSING, 2-WAY SOCKET, RED | two-way socket (red)
2
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket
3
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
4
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
5
69201299
Деталь CONNECTOR,X | two-way socket
6
69201300
Деталь TERMINAL,X | socket, 20 AWG
7
69201301
Деталь SEAL,CONN/TERM,X | 20-22 AWG (green)
8
72415-07GY
Деталь HOUSING,4-WAY,PIN/GREY | four-way pin (gray)
9
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG, terminal locations 1, 2
10
72343-10
Деталь TERMINAL,PIN,#16-20AWG/GOLD | pin 16-20 AWG (gold), terminal locations 3, 4
11
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
12
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
13
72607-08
Деталь HOUSING, 2-WAY PIN | two-way pin (black)
14
72608-08
Деталь TERMINAL,PIN,16-20AWG,150 METRI-PACK | pin, 16-20 AWG
15
69201711
Деталь CONNECTOR,8-WAY PIN | eight-way pin
16
69201164
Деталь SEAL,CONN/TERM,X | pin, 22 AWG
17
72526-01
Деталь HSG SCKT 2-WAY GRAY | socket two-way (gray)
18
72527-01
Деталь SOCKET TERMINAL 18-20 AWG | socket, 18-20 AWG
19
72528-01
Деталь SEAL WIRE 18-20 AWG BLUE | 18-20 AWG (blue)
20
69201427
Деталь CONNECTOR,X
21
69203272
Деталь CONNECTOR,HOUSING,4-WAY PIN,BLACK | four-way pin (black)
22
72543-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
23
72544-07
Деталь SECONDARY LOCK,3-WAY,FEM | three-way socket
24
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
25
72097-06
Деталь CAVITY PLUG,OVAL/ORANGE | oval (orange), terminal location C
26
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
27
69201406
Деталь CONNECTOR,X | three-way socket (black)
28
69201407
Деталь SEAL,CONN/TERM,X | socket, 20 AWG
29
72519-09BK
Деталь DUSTCAP,3-WAY SOCKET | three-way socket
30
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
31
69201398
Деталь SEAL,CONN/TERM,X | pin 20 AWG
32
69201613
Деталь CONNECTOR,3 WAY SEALED | three-way pin (black)
33
69203288
Деталь SEAL,CONN/TERM,CAVITY PLUG | cavity plug
34
69200662
Деталь TERMINAL,MALE,0.3-1.25 SQ MM | pin, 16-22 AWG, terminal locations 3, 4
35
69200664
Деталь SEAL,CONN/TERM,0.5 SQ MM | 20 AWG (black)
36
12500015
Деталь STRAP,TIE,XMAS,2 PIECE | anchored
