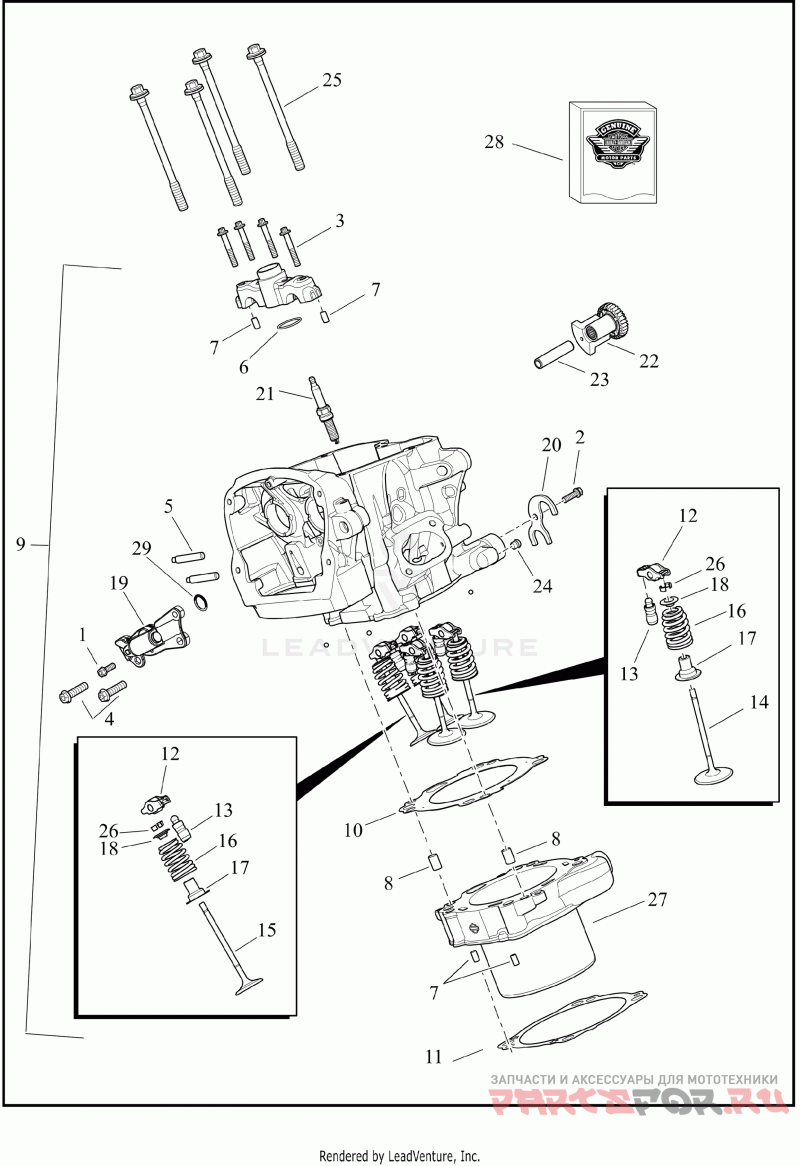

CYLINDERS, HEADS AND VALVES
Harley Davidson RH975 1ZH1 NIGHTSTER (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10200897 Деталь SCREW,FLANGE,HEX,M6 X 16 | Деталь SCREW,FLANGE,HEX,M6 X 16 | |
2 | 10201140 Деталь SCREW,FLANGE,HEX,M6 X 20 | Деталь SCREW,FLANGE,HEX,M6 X 20 | |
3 | 10200963 Деталь SCREW,M6X40,12PT. | Деталь SCREW,M6X40,12PT. | |
4 | 10500124 Деталь SCREW,CUST,12 PT FLANGE HEAD M8X30 | Деталь SCREW,CUST,12 PT FLANGE HEAD M8X30 | |
5 | 10900048 Деталь STUD,EXHAUST | Деталь STUD,EXHAUST | |
6 | 11900143 Деталь O-RING,CAM CAP | Деталь O-RING,CAM CAP | |
7 | 12000064 Деталь PIN,DOWEL 6MM DIA X 12MM LONG | Деталь PIN,DOWEL 6MM DIA X 12MM LONG | |
8 | 12000092 Деталь PIN,DOWEL 10MM DIA X 16MM LONG | Деталь PIN,DOWEL 10MM DIA X 16MM LONG | |
9 | 16501137 Деталь CYL HEAD,ASSY,FR,97MM,BLK,THM | front with camshaft cap, 10200897, 10500124, 10900048, 18000042, 18000052, 18100120, 18100121, 18100122, 18100127, 25500039, 31600190, 35200093, 35200094 | Деталь CYL HEAD,ASSY,FR,97MM,BLK,THM | front with camshaft cap, 10200897, 10500124, 10900048, 18000042, 18000052, 18100120, 18100121, 18100122, 18100127, 25500039, 31600190, 35200093, 35200094 | |
9 | 16501143 Деталь CYL HEAD,ASSY,RR,97MM,BLK,THM | rear with camshaft cap, 10200897, 10500124, 10900048, 18000042, 18000052, 18100120, 18100121, 18100122, 18100127, 25500039, 31600190, 35200093 | Деталь CYL HEAD,ASSY,RR,97MM,BLK,THM | rear with camshaft cap, 10200897, 10500124, 10900048, 18000042, 18000052, 18100120, 18100121, 18100122, 18100127, 25500039, 31600190, 35200093 | |
10 | 16500669A Деталь GASKET,CYL HD,97MM | Деталь GASKET,CYL HD,97MM | |
11 | 16500670 Деталь GASKET,CYL HD,BASE | Деталь GASKET,CYL HD,BASE | |
12 | 17300072A Деталь ROCKER ARM,ROLLER FINGER FOLLOWER | rocker arm | Деталь ROCKER ARM,ROLLER FINGER FOLLOWER | rocker arm | |
13 | 17900082A Деталь LIFTER,HYDRAULIC LASH ADJUSTER | hydraulic lash adjuster | Деталь LIFTER,HYDRAULIC LASH ADJUSTER | hydraulic lash adjuster | |
14 | 18000042 Деталь VALVE,INTAKE, 40MM | Деталь VALVE,INTAKE, 40MM | |
15 | 18000052 Деталь VALVE,EXHAUST, 33MM, SODIUM FILLED | Деталь VALVE,EXHAUST, 33MM, SODIUM FILLED | |
16 | 18100120 Деталь SPRING,VALVE | Деталь SPRING,VALVE | |
17 | 18100121 Деталь SEAL,VALVE,LOWER COLLAR | Деталь SEAL,VALVE,LOWER COLLAR | |
18 | 18100122 Деталь COLLAR,VALVE,TOP | valve top | Деталь COLLAR,VALVE,TOP | valve top | |
19 | 25500039 Деталь TENSIONER,CAMDR CHN,ASSY | Деталь TENSIONER,CAMDR CHN,ASSY | |
20 | 26900170 Деталь FITTING,CLG LN,CYL HEAD,BLK | Деталь FITTING,CLG LN,CYL HEAD,BLK | |
21 | 31600190 Деталь SPARK PLUG,M10,26MM REACH | Деталь SPARK PLUG,M10,26MM REACH | |
22 | 35200093 Деталь BALANCER,ENGN,ASSY | Деталь BALANCER,ENGN,ASSY | |
23 | 35200094 Деталь ENGN BAL SUB-CMPNT,SHAFT | Деталь ENGN BAL SUB-CMPNT,SHAFT | |
24 | 12600265 Деталь HDW,MISC,PLUG,SAE,M8 | Деталь HDW,MISC,PLUG,SAE,M8 | |
25 | 10200891 Деталь SCREW,CYL HEAD,M11 X 156.5 | Деталь SCREW,CYL HEAD,M11 X 156.5 | |
26 | 18100127 Деталь KEEPER,VALVE,X | Деталь KEEPER,VALVE,X | |
27 | 16800204 Деталь CYLINDER,ASSY,97MM,FR,BLK | front, with 12000064, 12000092 | Деталь CYLINDER,ASSY,97MM,FR,BLK | front, with 12000064, 12000092 | |
27 | 16800207 Деталь CYLINDER,ASSY,97MM,RR,BLK | rear, with 12000064, 12000092 | Деталь CYLINDER,ASSY,97MM,RR,BLK | rear, with 12000064, 12000092 | |
28 | 25701425 Деталь KIT,CVR/SLG,ENGINE OVERHAUL,97MM | engine overhaul | Деталь KIT,CVR/SLG,ENGINE OVERHAUL,97MM | engine overhaul | |
28 | 25701426 Деталь KIT,CVR/SLG,TOP END,97MM | top end | Деталь KIT,CVR/SLG,TOP END,97MM | top end | |
29 | 11900194 Деталь O-RING,CAMDRIVE TENSIONER | Деталь O-RING,CAMDRIVE TENSIONER |
