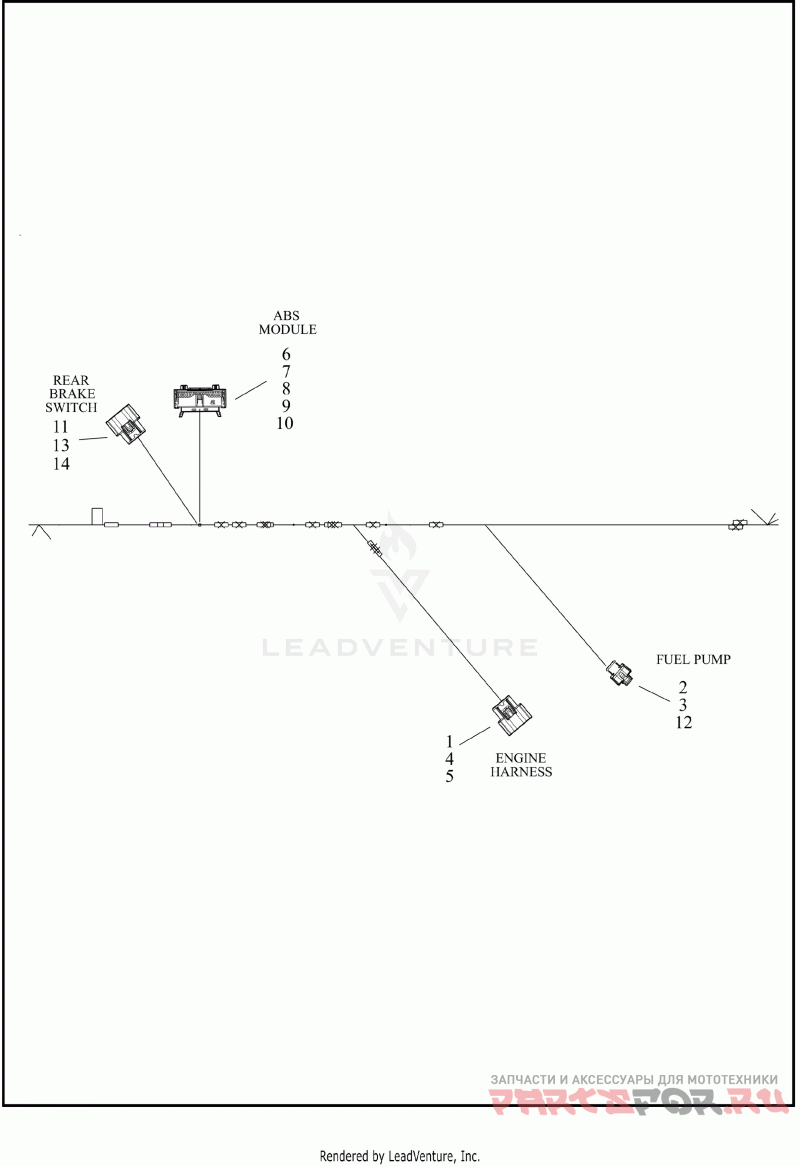

WIRING HARNESS, MAIN RH1250S (4 OF 6)
Harley Davidson RH1250S 1ZC4 SPORTSTER S (2025)
| # | oem код | название | цена |
|---|---|---|---|
69203437 Деталь HARNESS,WIRE,MAIN | Деталь HARNESS,WIRE,MAIN | ||
1 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
2 | 72407-07 Деталь TERMINAL SOCKET 16-20AWG | socket, 16-20 AWG | Деталь TERMINAL SOCKET 16-20AWG | socket, 16-20 AWG | |
3 | 72408-07 Деталь WIRE SEAL #16 20AWG/BLUE | 16-20 AWG (blue) | Деталь WIRE SEAL #16 20AWG/BLUE | 16-20 AWG (blue) | |
4 | 72473-07 Деталь SEAL PIN | (natural) | Деталь SEAL PIN | (natural) | |
5 | 72487-07BK Деталь HOUSING, 12-WAY SOCKET, BLACK | 12-way socket (black) | Деталь HOUSING, 12-WAY SOCKET, BLACK | 12-way socket (black) | |
6 | 72577-12 Деталь SECONDARY LOCK(PO) | Деталь SECONDARY LOCK(PO) | |
7 | 69202620 Деталь CONNECTOR,18-WAY SOCKET | 18-way socket (black) | Деталь CONNECTOR,18-WAY SOCKET | 18-way socket (black) | |
8 | 72579-12 Деталь TERMINAL,SOCKET,#14-16 AWG(PO) | socket, 14-16 AWG | Деталь TERMINAL,SOCKET,#14-16 AWG(PO) | socket, 14-16 AWG | |
9 | 72580-12 Деталь TERMINAL,SOCKET,#18-20 AWG(PO) | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG(PO) | socket, 18-20 AWG | |
10 | 72633-02 Деталь SEAL WIRE WHITE #14-16AWG | 14-16 AWG (white) | Деталь SEAL WIRE WHITE #14-16AWG | 14-16 AWG (white) | |
11 | 69203462 Деталь CONNECTOR,HOUSING,2-PIN | housing, two pin | Деталь CONNECTOR,HOUSING,2-PIN | housing, two pin | |
12 | 69202335 Деталь CONNECTOR,HOUSING,2-WAY SOCKET,CODE 1 | housing, two-way socket | Деталь CONNECTOR,HOUSING,2-WAY SOCKET,CODE 1 | housing, two-way socket | |
13 | 69203463 Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG | Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG | |
14 | 69203464 Деталь SEAL,CONN/TERM,SEAL,#20AWG | 20 AWG | Деталь SEAL,CONN/TERM,SEAL,#20AWG | 20 AWG |
