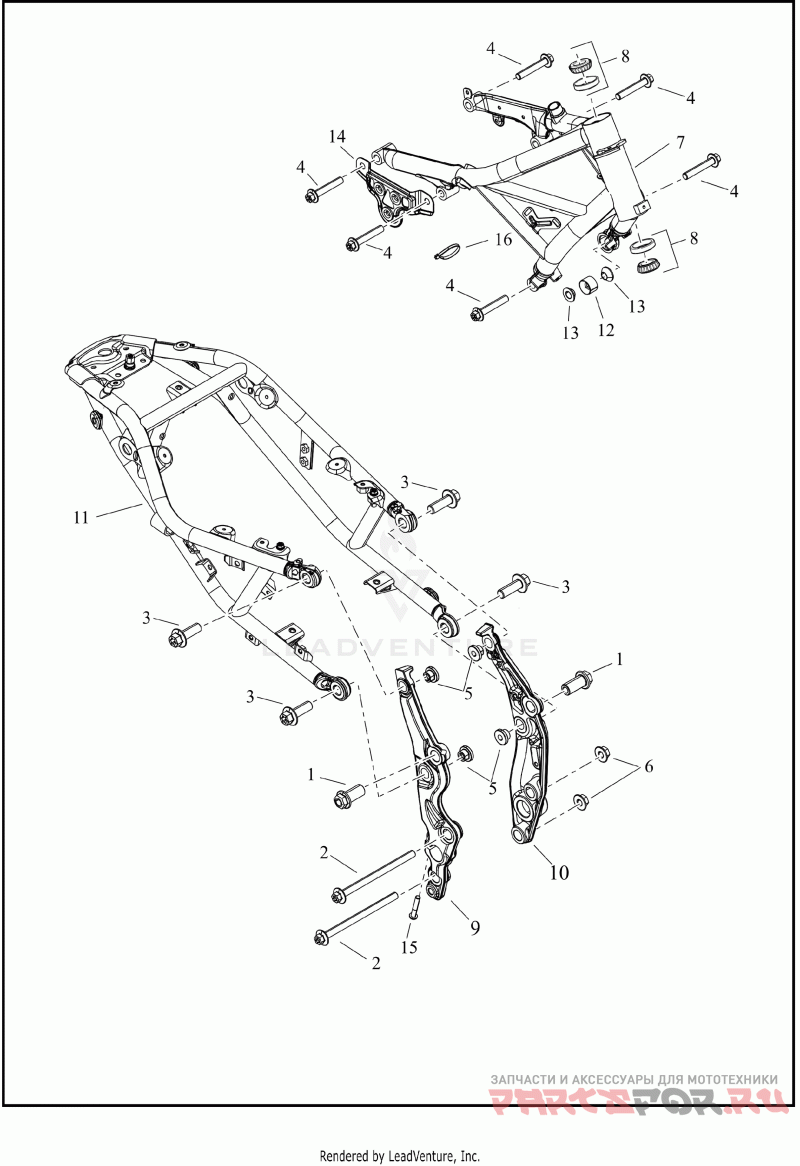

Рама

Harley Davidson RH1250S 1ZC4 SPORTSTER S (2025)

Harley Davidson
#oem кодцена
1
10200863
Деталь SCREW,HEX FLANGE,M20X40
2
10200865
Деталь SCREW,HEX,FLANGE,M12X175
3
10200867
Деталь SCREW,HEX FLANGE,M12X35
4
10200933
Деталь SCREW,HEX,FLANGE M12X1.75-70
5
10400056
Деталь NUT,CUST,D SHAPE
6
10400057
Деталь NUT,CUST,PIVOTSHAFT
7
47000258
Деталь KIT,FRM,ASSY | with bearing cup
8
45700080
Деталь KIT,STRG,STEERING HEAD
9
47200640
Деталь BRKT,CHAS STRUCT MTG,MID,RH | mounting, right
10
47201080
Деталь BRKT,CHAS STRUCT MTG,MID,LH | mounting, left
11
47200639
Деталь STRUCT TAILSECT,WELDMENT,PNTD
12
47200706
Деталь CHASSIS STRUCT MISC CMPNT,COLLET
13
47200707
Деталь CHASSIS STRUCT MISC CMPNT,TAPERED SPACER | tapered
14
47200729
Деталь FRAME SUB-CMPNT,V COVER, BRKT, ASSY | frame
15
10200931
Деталь SCREW,BHCS, M8X1.25-45
16
10006
Деталь STRAP,TIE,X
