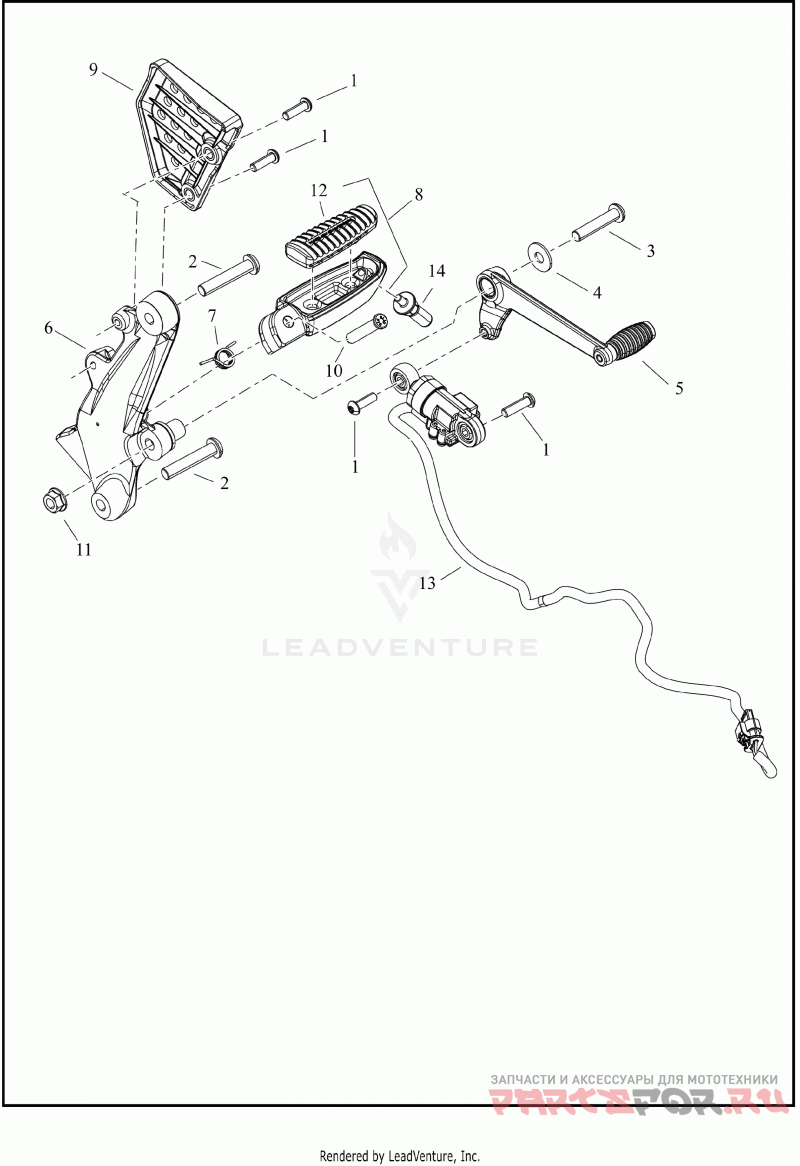

FOOT CONTROL, LEFT
Harley Davidson RA1250ST 1ZJS PAN AMERICA 1250 ST (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10200712 Деталь SCREW,BUTTON,TORX,M6X20 | Деталь SCREW,BUTTON,TORX,M6X20 | |
2 | 10201312 Деталь SCREW,BHCS, M8X1.25-25 | Деталь SCREW,BHCS, M8X1.25-25 | |
3 | 10201009 Деталь SCREW,M8X1.25 | Деталь SCREW,M8X1.25 | |
4 | 10600060 Деталь WASHER,CUST,8.4X1.6X22 | Деталь WASHER,CUST,8.4X1.6X22 | |
5 | 33600269 Деталь SUB-ASSY,SHF LVR,RDR | Деталь SUB-ASSY,SHF LVR,RDR | |
6 | 33600309A Деталь SUB-ASSY,SHF LVR,RDR,BRACKET | rider shift lever subassembly | Деталь SUB-ASSY,SHF LVR,RDR,BRACKET | rider shift lever subassembly | |
7 | 50500703 Деталь FTPEG,RDR,RETURN SPRING | footpeg, rider | Деталь FTPEG,RDR,RETURN SPRING | footpeg, rider | |
8 | 50502078 Деталь SUB-ASSY,FTPEG,RDR,LH | rider assembly, left with 50502462 | Деталь SUB-ASSY,FTPEG,RDR,LH | rider assembly, left with 50502462 | |
9 | 50501338 Деталь GUARD,HEEL PAD,LH | heel pad, left | Деталь GUARD,HEEL PAD,LH | heel pad, left | |
10 | 50501782 Деталь FOOTPEG,RDR,CLEVIS PIN | Деталь FOOTPEG,RDR,CLEVIS PIN | |
11 | 10100132 Деталь NUT,M8X1.25,FLANGE,ZINC/NICKEL | Деталь NUT,M8X1.25,FLANGE,ZINC/NICKEL | |
12 | 50502462 Деталь FTPEG,RDR,RUBBER,FTPEG PEDAL | Деталь FTPEG,RDR,RUBBER,FTPEG PEDAL | |
13 | 32700151 Деталь KIT,SNSR,PRO SHIFT | Деталь KIT,SNSR,PRO SHIFT | |
14 | 33130-07A Деталь WEAR PEG,FTRST | Деталь WEAR PEG,FTRST |
