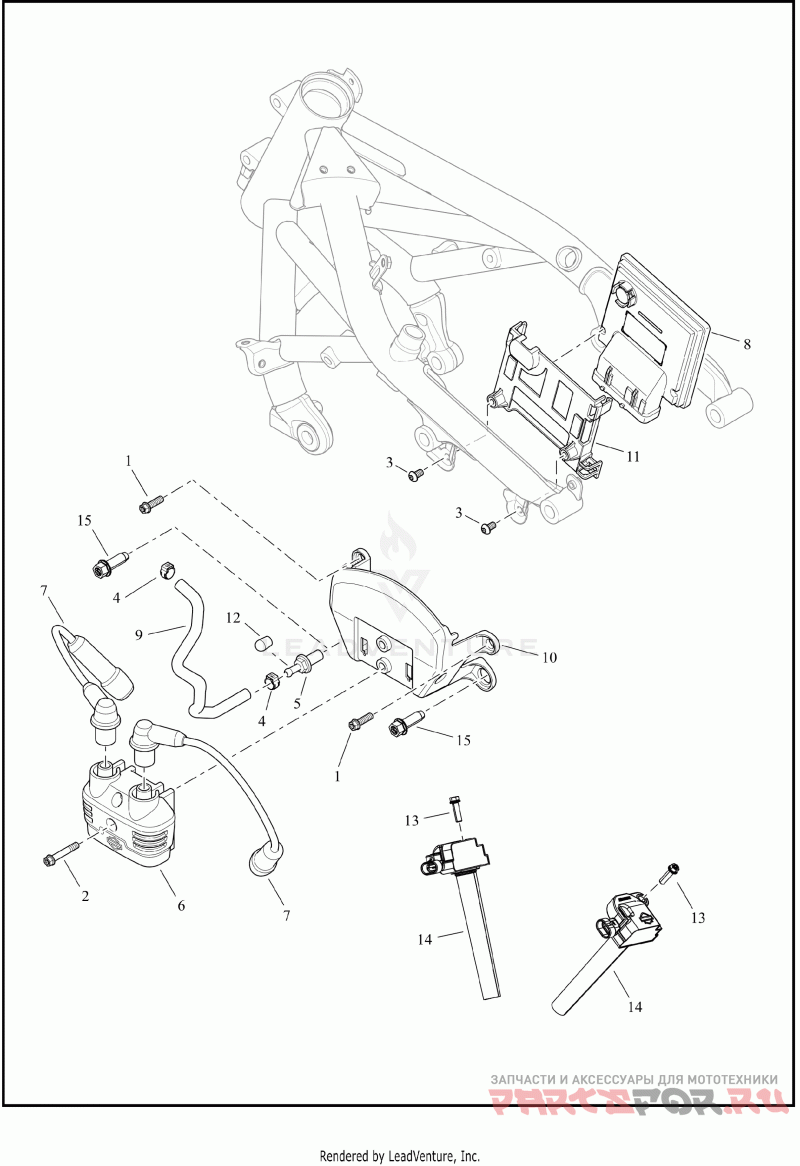

ELECTRONIC IGNITION SYSTEM
Harley Davidson RA1250ST 1ZJS PAN AMERICA 1250 ST (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10200898 Деталь SCREW,FLANGE,HEX,M6 X 20 | Деталь SCREW,FLANGE,HEX,M6 X 20 | |
2 | 10200900 Деталь SCREW,FLANGE,HEX,M6 X 35 | Деталь SCREW,FLANGE,HEX,M6 X 35 | |
3 | 10200934 Деталь SCREW,BHCS, M6X1.0-10 | Деталь SCREW,BHCS, M6X1.0-10 | |
4 | 10800182 Деталь CLAMP,HOSE,OETIKER | (California, China, ENG, EN2, HDI, HD4, Japan, JP2, AZN) | Деталь CLAMP,HOSE,OETIKER | (California, China, ENG, EN2, HDI, HD4, Japan, JP2, AZN) | |
5 | 29400419 Деталь BOLT,BRTHR,M10 | (California, China, ENG, EN2, HDI, HD4, Japan, JP2, AZN) | Деталь BOLT,BRTHR,M10 | (California, China, ENG, EN2, HDI, HD4, Japan, JP2, AZN) | |
6 | 31600166 Деталь COIL,IGN,DUAL | Деталь COIL,IGN,DUAL | |
7 | 31600196 Деталь CABLE,S-PLG,COIL ELBOW, RED CABLE | spark plug, red | Деталь CABLE,S-PLG,COIL ELBOW, RED CABLE | spark plug, red | |
8 | 41001663 Деталь MODULE,ELEK CONT,ETC,DL | Деталь MODULE,ELEK CONT,ETC,DL | |
9 | 60800054 Деталь HOSE,CARBON CSTR,MIDPOINT TO PURGE PORT | (California, China, ENG, EN2, HDI, HD4, Japan, JP2, AZN) | Деталь HOSE,CARBON CSTR,MIDPOINT TO PURGE PORT | (California, China, ENG, EN2, HDI, HD4, Japan, JP2, AZN) | |
10 | 69202117 Деталь BRKT,ELEC MT,IGNITION COIL | Деталь BRKT,ELEC MT,IGNITION COIL | |
11 | 69202312 Деталь ELEC MISC CMPNT,ECM CADDY | Деталь ELEC MISC CMPNT,ECM CADDY | |
12 | 90383-98 Деталь CAP PLUG,INDUCTN MODULE | ignition module (California, China, ENG, EN2, HDI, HD4, Japan, JP2, AZN) | Деталь CAP PLUG,INDUCTN MODULE | ignition module (California, China, ENG, EN2, HDI, HD4, Japan, JP2, AZN) | |
13 | 10201140 Деталь SCREW,FLANGE,HEX,M6 X 20 | Деталь SCREW,FLANGE,HEX,M6 X 20 | |
14 | 31600167 Деталь COIL,IGN,SINGLE | (single) | Деталь COIL,IGN,SINGLE | (single) | |
15 | 10201078 Деталь SCREW,M10X1.5 | (Australia, AU2, Canada, Domestic) | Деталь SCREW,M10X1.5 | (Australia, AU2, Canada, Domestic) |
