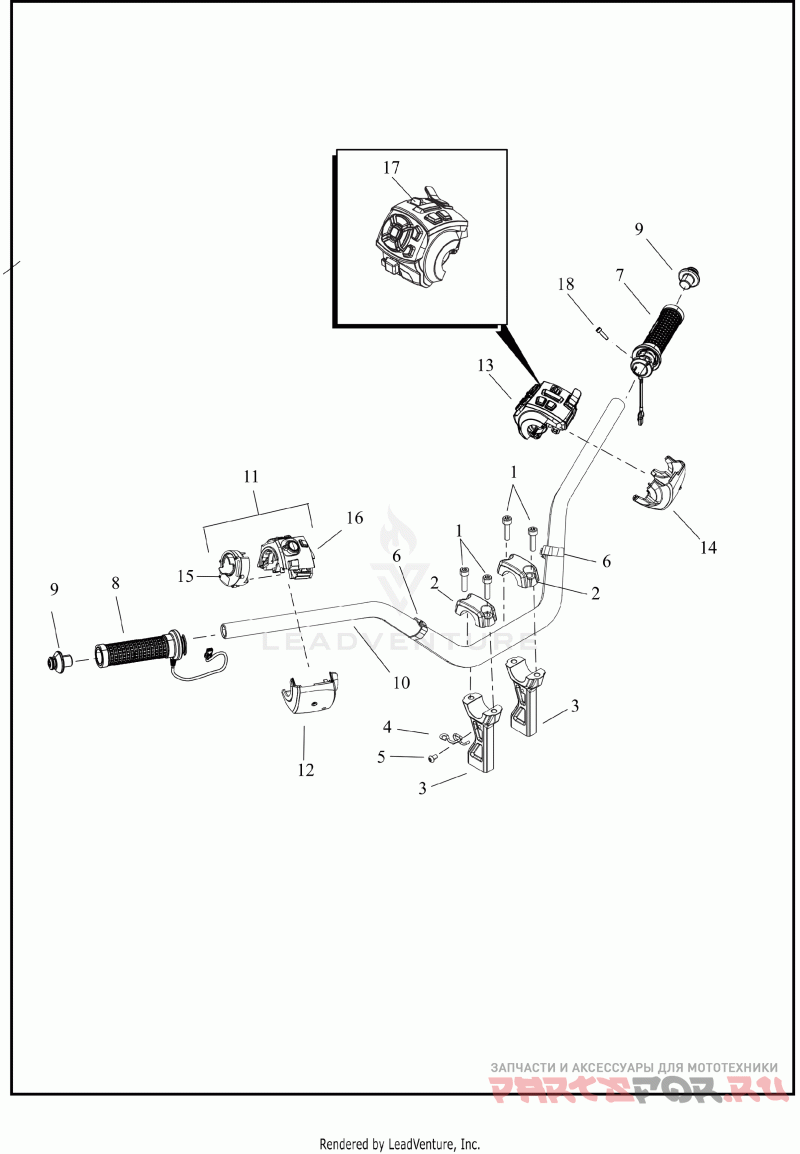

HANDLEBAR, HAND GRIPS, HAND CONTROLS
Harley Davidson RA1250SE 1ZGS CVO PAN AMERICA (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10201022 Деталь SCREW,6-LOBE HEAD CAP | Деталь SCREW,6-LOBE HEAD CAP | |
2 | 55900192 Деталь CLAMP,UPR H-BAR,MACH | upper handle bar | Деталь CLAMP,UPR H-BAR,MACH | upper handle bar | |
3 | 55900191 Деталь CLAMP,LWR H-BAR,MACH | lower handle bar | Деталь CLAMP,LWR H-BAR,MACH | lower handle bar | |
4 | 41600313 Деталь BRKT,BRK MTG,WIREFORM | Деталь BRKT,BRK MTG,WIREFORM | |
5 | 10200934 Деталь SCREW,BHCS, M6X1.0-10 | Деталь SCREW,BHCS, M6X1.0-10 | |
6 | 69202671 Деталь ELEC MISC CMPNT,WIRE RETAINER | Деталь ELEC MISC CMPNT,WIRE RETAINER | |
7 | 56100745 Деталь GRIP,LH,HEATED, 7/8 IN | left, heated, with 10201033 | Деталь GRIP,LH,HEATED, 7/8 IN | left, heated, with 10201033 | |
8 | 56100744 Деталь GRIP,THROT,HEATED,7/8 IN | right, heated | Деталь GRIP,THROT,HEATED,7/8 IN | right, heated | |
9 | 55801095 Деталь H-BAR,ENDCAP | Деталь H-BAR,ENDCAP | |
10 | 55800906 Деталь H-BAR,BLACK | Деталь H-BAR,BLACK | |
11 | 71500523A Деталь HAND CONT,RH W/HEAT & TGS | right, with 71500528, 71500556A | Деталь HAND CONT,RH W/HEAT & TGS | right, with 71500528, 71500556A | |
12 | 71500547 Деталь HAND CONT,RH , COVER REAR | right, rear | Деталь HAND CONT,RH , COVER REAR | right, rear | |
13 | 71500522A Деталь HAND CONT,LH, W/CRUISE & HEAT | left | Деталь HAND CONT,LH, W/CRUISE & HEAT | left | |
14 | 71500537 Деталь HAND CONT,LH, COVER REAR | left, rear | Деталь HAND CONT,LH, COVER REAR | left, rear | |
15 | 71500528 Деталь HAND CONT,RH, TWIST GRIP SENSOR | twist grip sensor | Деталь HAND CONT,RH, TWIST GRIP SENSOR | twist grip sensor | |
16 | 71500556A Деталь HAND CONT,RH W/HEAT | right | Деталь HAND CONT,RH W/HEAT | right | |
17 | 71500683 Деталь KIT,HAND CONT,LH, W/ TGS,CC SWITCH | Деталь KIT,HAND CONT,LH, W/ TGS,CC SWITCH | |
18 | 10201033 Деталь SCREW,M4X16,SHCS,TORX | Деталь SCREW,M4X16,SHCS,TORX |
