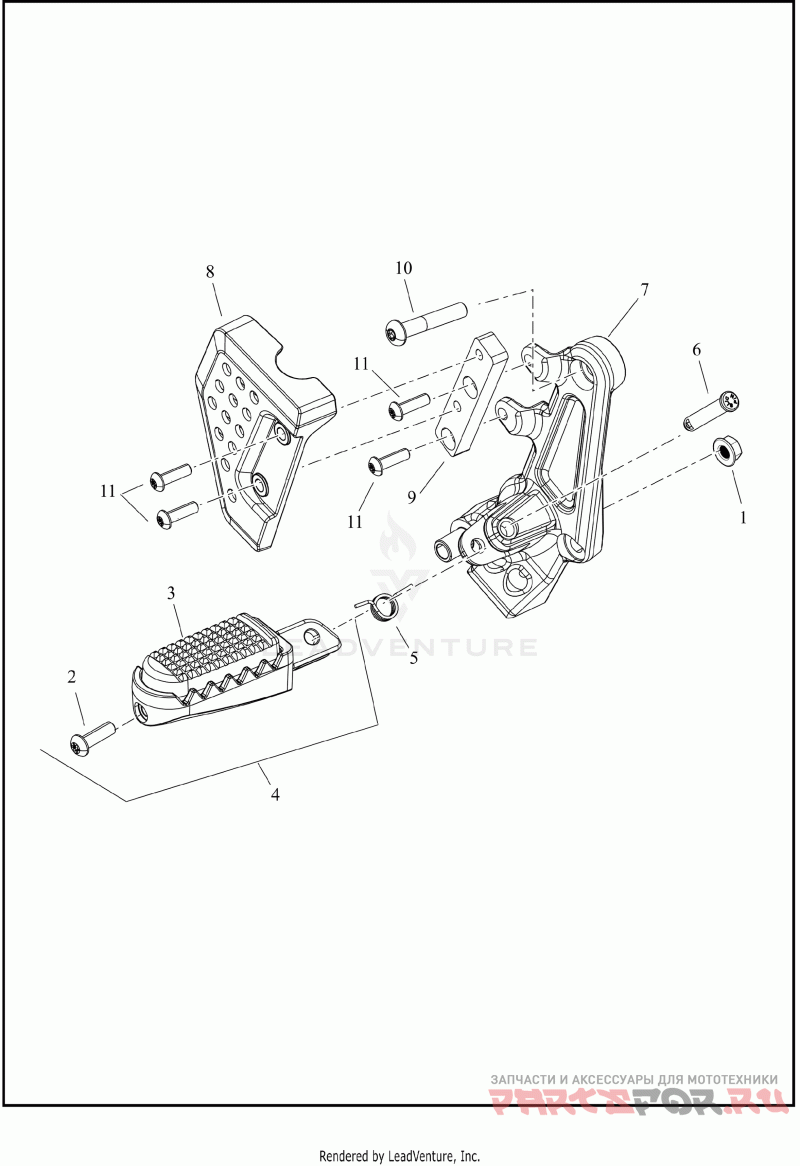

FOOT CONTROL, RIGHT
Harley Davidson RA1250SE 1ZGS CVO PAN AMERICA (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10100132 Деталь NUT,M8X1.25,FLANGE,ZINC/NICKEL | Деталь NUT,M8X1.25,FLANGE,ZINC/NICKEL | |
2 | 10201143 Деталь SCREW,BUTTON,TORX,M6X20 | Деталь SCREW,BUTTON,TORX,M6X20 | |
3 | 50501310 Деталь INSERT,FTPEG,RUBBER | Деталь INSERT,FTPEG,RUBBER | |
4 | 50501327 Деталь FOOTPEG,RDR,RH,PAINTED,ASSY | (right) with 10201143, 50501310 | Деталь FOOTPEG,RDR,RH,PAINTED,ASSY | (right) with 10201143, 50501310 | |
5 | 50500703 Деталь FTPEG,RDR,RETURN SPRING | footpeg, rider | Деталь FTPEG,RDR,RETURN SPRING | footpeg, rider | |
6 | 50501782 Деталь FOOTPEG,RDR,CLEVIS PIN | Деталь FOOTPEG,RDR,CLEVIS PIN | |
7 | 50501785 Деталь SUB-ASSY,FTPEG,RDR,BRACKET | Деталь SUB-ASSY,FTPEG,RDR,BRACKET | |
8 | 50501337 Деталь GUARD,HEEL PAD,RH | heel pad, right | Деталь GUARD,HEEL PAD,RH | heel pad, right | |
9 | 50501802 Деталь GUARD,HEEL PAD,LH,BLACK | heel guard, right | Деталь GUARD,HEEL PAD,LH,BLACK | heel guard, right | |
10 | 10200931 Деталь SCREW,BHCS, M8X1.25-45 | Деталь SCREW,BHCS, M8X1.25-45 | |
11 | 10200712 Деталь SCREW,BUTTON,TORX,M6X20 | Деталь SCREW,BUTTON,TORX,M6X20 |
