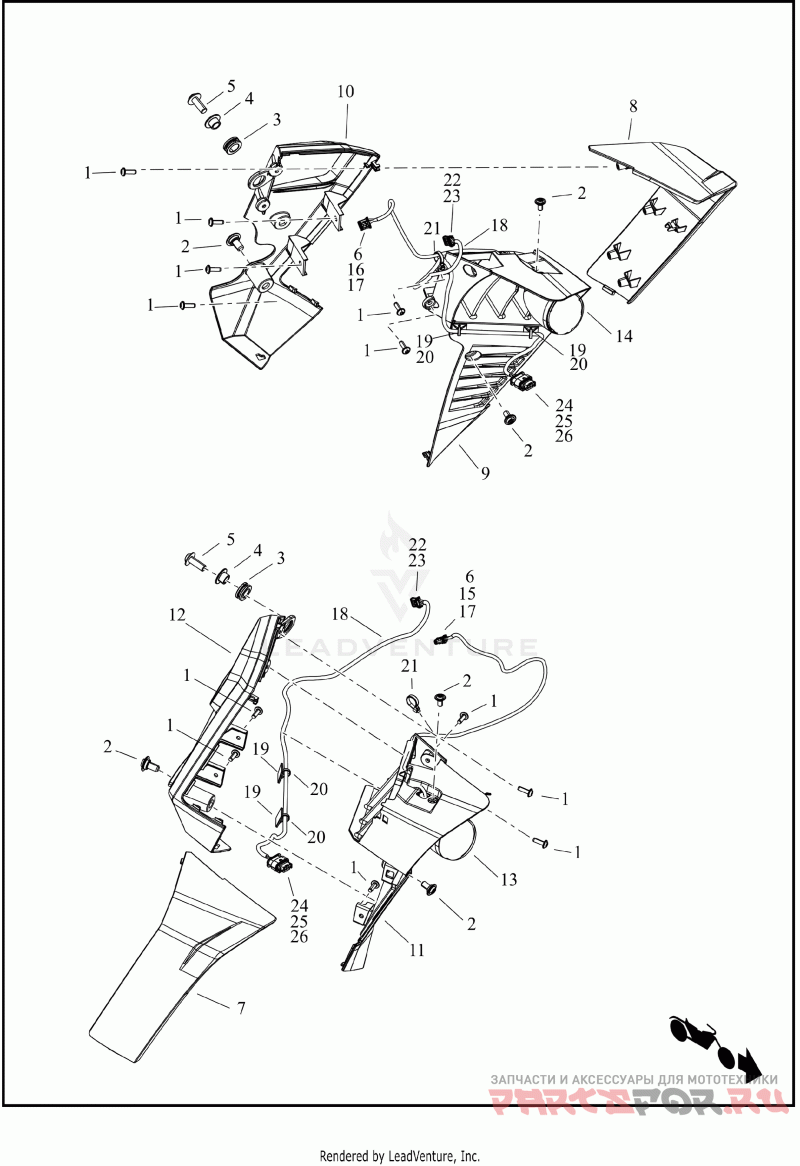

FAIRING LOWERS AND FRONT TURN SIGNALS
Harley Davidson RA1250SE 1ZGS CVO PAN AMERICA (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10200846 Деталь SCREW,THREAD FORMING, M5, DELTA PT | Деталь SCREW,THREAD FORMING, M5, DELTA PT | |
2 | 10500208 Деталь SCREW,CUST,6 LOBE,SHOULDER,M6X1.0 | Деталь SCREW,CUST,6 LOBE,SHOULDER,M6X1.0 | |
3 | 12100137 Деталь GROMMET,3MM PANEL - 18MM OD 13.6MM ID | Деталь GROMMET,3MM PANEL - 18MM OD 13.6MM ID | |
4 | 12600240 Деталь HDW,MISC,COM LIMITER,13.6MM OD 10.6MM ID | Деталь HDW,MISC,COM LIMITER,13.6MM OD 10.6MM ID | |
5 | 10200924 Деталь SCREW,BHCS, FLANGE, M6X1.0-16 | Деталь SCREW,BHCS, FLANGE, M6X1.0-16 | |
6 | 5118 Деталь TERMINAL,X | (Canada, Domestic) | Деталь TERMINAL,X | (Canada, Domestic) | |
7 | 57100348A Деталь FAIRING,LWR,WATER COOLER,OUTLET | right, water cooler, outlet | Деталь FAIRING,LWR,WATER COOLER,OUTLET | right, water cooler, outlet | |
8 | 57100349A Деталь FAIRING,LWR,WATER COOLER, OUTLET | left, water cooler, outlet | Деталь FAIRING,LWR,WATER COOLER, OUTLET | left, water cooler, outlet | |
9 | 57100350 Деталь FAIRING,LWR,OIL COOLER, INNER SHROUD | left, oil cooler, inner shroud | Деталь FAIRING,LWR,OIL COOLER, INNER SHROUD | left, oil cooler, inner shroud | |
10 | 57100351 Деталь FAIRING,LWR,OIL COOLER, OUTER SHROUD | left, oil cooler, outer shroud | Деталь FAIRING,LWR,OIL COOLER, OUTER SHROUD | left, oil cooler, outer shroud | |
11 | 57100353 Деталь FAIRING,LWR,WATER COOLER, INNER SHROUD | right, oil cooler, inner shroud | Деталь FAIRING,LWR,WATER COOLER, INNER SHROUD | right, oil cooler, inner shroud | |
12 | 57100354 Деталь FAIRING,LWR,WATER COOLER, OUTER SHROUD | right, oil cooler, outer shroud | Деталь FAIRING,LWR,WATER COOLER, OUTER SHROUD | right, oil cooler, outer shroud | |
13 | 67801165 Деталь TURNSIGNAL,FR/RH,VERTICAL,DOM,455 | right, amber, LED bullet, with 5118, 69200308, 72908-11 (Canada, Domestic) | Деталь TURNSIGNAL,FR/RH,VERTICAL,DOM,455 | right, amber, LED bullet, with 5118, 69200308, 72908-11 (Canada, Domestic) | |
13 | 67801235 Деталь TURNSIGNAL,FR/RH,VERTICAL,HDI,455 | right, amber, LED bullet, with 5118, 69200308, 72908-11 (all except Canada, Domestic) | Деталь TURNSIGNAL,FR/RH,VERTICAL,HDI,455 | right, amber, LED bullet, with 5118, 69200308, 72908-11 (all except Canada, Domestic) | |
14 | 67801166 Деталь TURNSIGNAL,FR/LH,VERTICAL,DOM,455 | left, amber, LED bullet, with 5118, 69200308, 69201179 (Canada, Domestic) | Деталь TURNSIGNAL,FR/LH,VERTICAL,DOM,455 | left, amber, LED bullet, with 5118, 69200308, 69201179 (Canada, Domestic) | |
14 | 67801236 Деталь TURNSIGNAL,FR/LH,VERTICAL,HDI,455 | left, amber, LED bullet, with 5118, 69200308, 69201179 (all except Canada, Domestic) | Деталь TURNSIGNAL,FR/LH,VERTICAL,HDI,455 | left, amber, LED bullet, with 5118, 69200308, 69201179 (all except Canada, Domestic) | |
15 | 72908-11 Деталь CONNECTOR,X | four-way socket, right (black) | Деталь CONNECTOR,X | four-way socket, right (black) | |
16 | 69201179 Деталь CONNECTOR,X | four-way socket, left (gray) | Деталь CONNECTOR,X | four-way socket, left (gray) | |
17 | 69200308 Деталь TERMINAL,SOCKET,#22AWG(PO) | socket, 22 AWG (Canada, Domestic) | Деталь TERMINAL,SOCKET,#22AWG(PO) | socket, 22 AWG (Canada, Domestic) | |
18 | 69203245 Деталь HARNESS,WIRE,AUX LAMP JUMPER | auxiliary lamp jumper | Деталь HARNESS,WIRE,AUX LAMP JUMPER | auxiliary lamp jumper | |
19 | 69203122 Деталь WIRE HARN SUB-CMPNT,ADHESIVE BASE | wire harness | Деталь WIRE HARN SUB-CMPNT,ADHESIVE BASE | wire harness | |
20 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
21 | 10006 Деталь STRAP,TIE,X | Деталь STRAP,TIE,X | |
23 | 72910-11 Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG | Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG | |
24 | 69203207 Деталь CONNECTOR,4-WAY SOCKET | 4-way socket | Деталь CONNECTOR,4-WAY SOCKET | 4-way socket | |
25 | 69201300 Деталь TERMINAL,X | socket, 20 AWG | Деталь TERMINAL,X | socket, 20 AWG | |
26 | 69201301 Деталь SEAL,CONN/TERM,X | 20-22 AWG (green) | Деталь SEAL,CONN/TERM,X | 20-22 AWG (green) |
