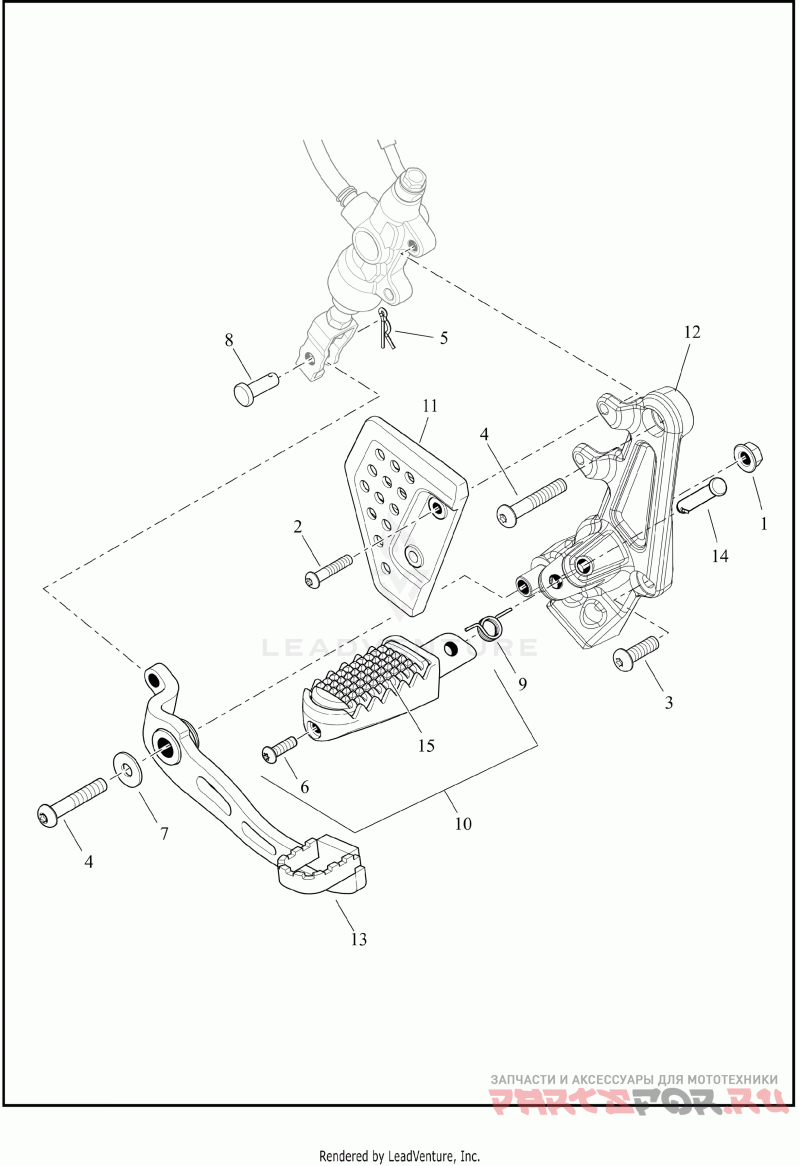

FOOT CONTROL, RIGHT
Harley Davidson RA1250S 1ZES PAN AMERICA 1250 SPECIAL (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10100132 Деталь NUT,M8X1.25,FLANGE,ZINC/NICKEL | Деталь NUT,M8X1.25,FLANGE,ZINC/NICKEL | |
2 | 10200712 Деталь SCREW,BUTTON,TORX,M6X20 | Деталь SCREW,BUTTON,TORX,M6X20 | |
3 | 10201312 Деталь SCREW,BHCS, M8X1.25-25 | Деталь SCREW,BHCS, M8X1.25-25 | |
4 | 10200931 Деталь SCREW,BHCS, M8X1.25-45 | Деталь SCREW,BHCS, M8X1.25-45 | |
5 | 509 Деталь PIN,X | Деталь PIN,X | |
6 | 10201143 Деталь SCREW,BUTTON,TORX,M6X20 | Деталь SCREW,BUTTON,TORX,M6X20 | |
7 | 10600060 Деталь WASHER,CUST,8.4X1.6X22 | Деталь WASHER,CUST,8.4X1.6X22 | |
8 | 12000098 Деталь PIN,CLEVIS | clevis | Деталь PIN,CLEVIS | clevis | |
9 | 50500703 Деталь FTPEG,RDR,RETURN SPRING | footpeg, rider | Деталь FTPEG,RDR,RETURN SPRING | footpeg, rider | |
10 | 50501327 Деталь FOOTPEG,RDR,RH,PAINTED,ASSY | (right) with 10201143, 50501310 | Деталь FOOTPEG,RDR,RH,PAINTED,ASSY | (right) with 10201143, 50501310 | |
11 | 50501337 Деталь GUARD,HEEL PAD,RH | Деталь GUARD,HEEL PAD,RH | |
12 | 50501785 Деталь SUB-ASSY,FTPEG,RDR,BRACKET | Деталь SUB-ASSY,FTPEG,RDR,BRACKET | |
13 | 50600421 Деталь PEDAL,BRK,RR, FT BRK ,ADJ | Деталь PEDAL,BRK,RR, FT BRK ,ADJ | |
14 | 50501782 Деталь FOOTPEG,RDR,CLEVIS PIN | Деталь FOOTPEG,RDR,CLEVIS PIN | |
15 | 50501310 Деталь INSERT,FTPEG,RUBBER | Деталь INSERT,FTPEG,RUBBER |
