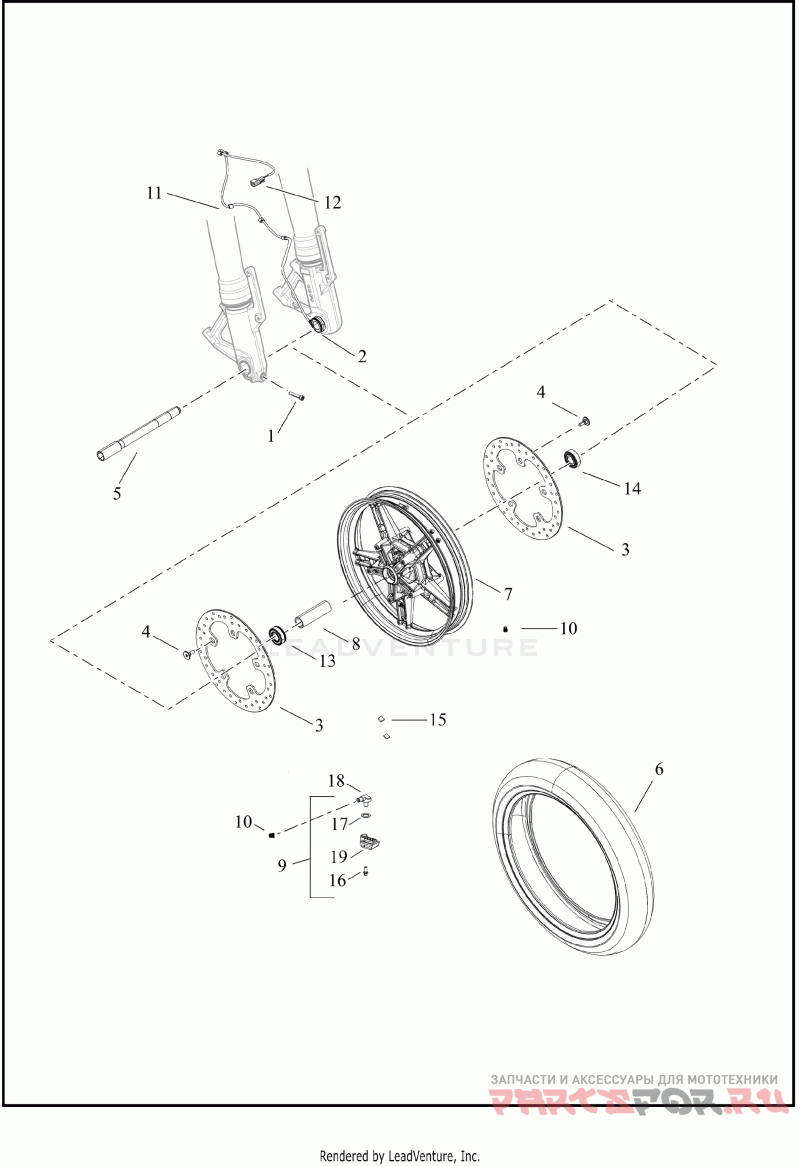

Колесо переднее
Harley Davidson RA1250S 1ZES PAN AMERICA 1250 SPECIAL (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10201048 Деталь SCREW,6-LOBE HEAD CAP | Деталь SCREW,6-LOBE HEAD CAP | |
2 | 41100024 Деталь SNSR RING,ABS WHL,X | wheel speed, ABS, with 74190-98 | Деталь SNSR RING,ABS WHL,X | wheel speed, ABS, with 74190-98 | |
3 | 41500158A Деталь ROTOR,BRK,FR,320MM FLOATING | Деталь ROTOR,BRK,FR,320MM FLOATING | |
4 | 41500196 Деталь ROTOR,BRK,SHOULDER BOLT ASSY | shoulder | Деталь ROTOR,BRK,SHOULDER BOLT ASSY | shoulder | |
5 | 43000175 Деталь AXLE,FR,NARROW | front, narrow | Деталь AXLE,FR,NARROW | front, narrow | |
6 | 43100042 Деталь TIRE,FR,120/70R19 60V SCRCHR ADVENTURE | Деталь TIRE,FR,120/70R19 60V SCRCHR ADVENTURE | |
7 | 43300569 Деталь WHL,FR,S/5SPK,BLK,19X3 | 5 spoke | Деталь WHL,FR,S/5SPK,BLK,19X3 | 5 spoke | |
8 | 43300600 Деталь SPACER,FR WHL BRG,109.11 | Деталь SPACER,FR WHL BRG,109.11 | |
9 | 42300142 Деталь MONITOR,TIRE PRESS,ASSY,434MHZ,90DEG,BLK | with 10201167, 11900155, 42300139, 42300141 (except Japan, JPN2) | Деталь MONITOR,TIRE PRESS,ASSY,434MHZ,90DEG,BLK | with 10201167, 11900155, 42300139, 42300141 (except Japan, JPN2) | |
9 | 42300143 Деталь MONITOR,TIRE PRESS,ASSY,315MHZ,90DEG,BLK | with 10201167, 11900155, 42300140, 42300141 (Japan, JPN2) | Деталь MONITOR,TIRE PRESS,ASSY,315MHZ,90DEG,BLK | with 10201167, 11900155, 42300140, 42300141 (Japan, JPN2) | |
10 | 41123-79 Деталь CAP,VALVE | Деталь CAP,VALVE | |
11 | 12200214 Деталь CLIP,RETG,6MM, TRPL CLIP | triple | Деталь CLIP,RETG,6MM, TRPL CLIP | triple | |
12 | 74190-98 Деталь TERMINAL,PIN,#16-20AWG | pin, 16-20 AWG | Деталь TERMINAL,PIN,#16-20AWG | pin, 16-20 AWG | |
13 | 9276B Деталь BEARING,ROLL ELEM,NON-ABS WHEEL BEARING | Деталь BEARING,ROLL ELEM,NON-ABS WHEEL BEARING | |
14 | 9252A Деталь BEARING,ROLL ELEM,ABS WHEEL | with encoder, ABS | Деталь BEARING,ROLL ELEM,ABS WHEEL | with encoder, ABS | |
15 | 95594-84C Деталь WEIGHT,WHL,5-GRAM/BLACK | Деталь WEIGHT,WHL,5-GRAM/BLACK | |
16 | 10201167 Деталь SCREW,TPMS | Деталь SCREW,TPMS | |
17 | 11900155 Деталь O-RING,TPMS,-112 | Деталь O-RING,TPMS,-112 | |
18 | 42300141 Деталь VALVE STEM,90 DEG,BLK | Деталь VALVE STEM,90 DEG,BLK | |
19 | 42300139 Деталь MONITOR,TIRE PRESS,434MHZ,KEYED | (except Japan, JPN2) | Деталь MONITOR,TIRE PRESS,434MHZ,KEYED | (except Japan, JPN2) | |
19 | 42300140 Деталь MONITOR,TIRE PRESS,315MHZ,KEYED | (Japan, JPN2) | Деталь MONITOR,TIRE PRESS,315MHZ,KEYED | (Japan, JPN2) |
