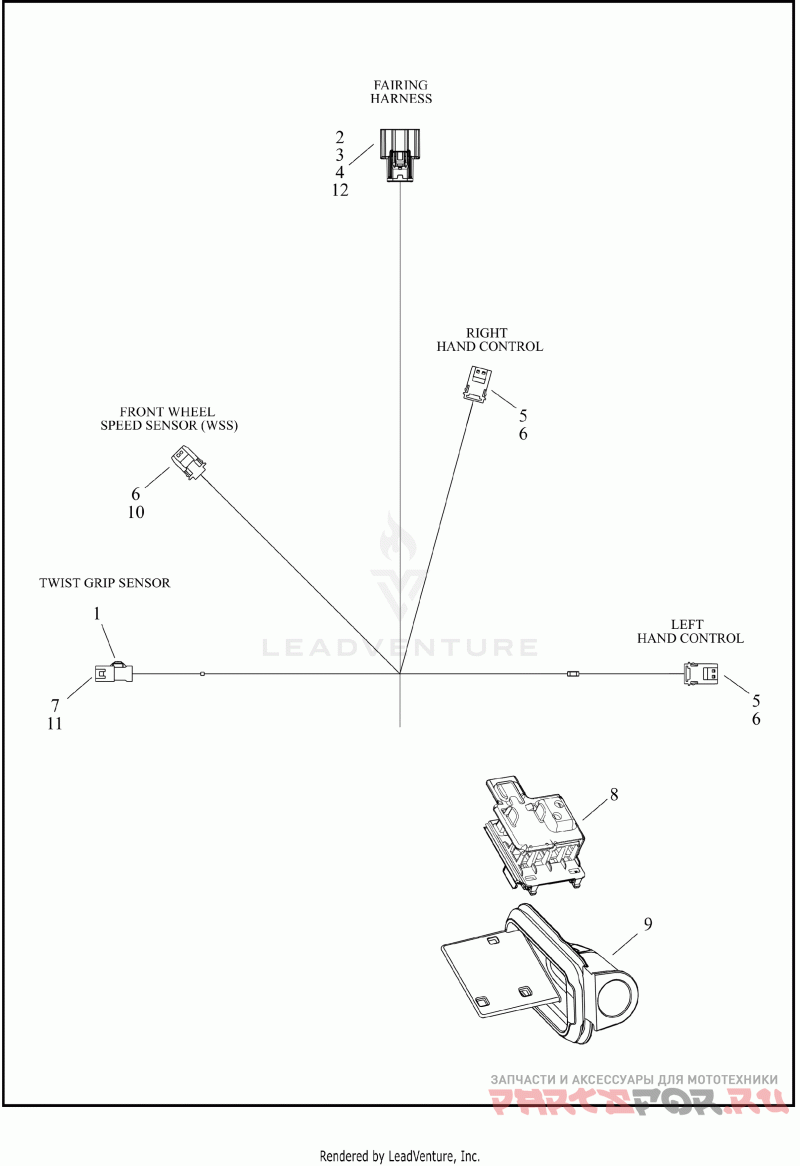

WIRING HARNESS, FRAME BACKBONE - FXLRST (2 OF 2)
Harley Davidson FXLRST 1YXA LOW RIDER ST (2025)
| # | oem код | название | цена |
|---|---|---|---|
69203212 Деталь HARNESS,WIRE,FRAME BACKBONE | Деталь HARNESS,WIRE,FRAME BACKBONE | ||
1 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | |
2 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG, terminal location 1, 2, 3, 5, 6, 8 | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG, terminal location 1, 2, 3, 5, 6, 8 | |
3 | 72272-07 Деталь TERMINAL, SOCKET #14-16 AWG | socket, 14-16 AWG, terminal location 7 | Деталь TERMINAL, SOCKET #14-16 AWG | socket, 14-16 AWG, terminal location 7 | |
4 | 72473-07 Деталь SEAL PIN | socket, 18-20 AWG, terminal location 4 | Деталь SEAL PIN | socket, 18-20 AWG, terminal location 4 | |
5 | 72907-11 Деталь HOUSING,4-WAY PIN | four-way pin (black) | Деталь HOUSING,4-WAY PIN | four-way pin (black) | |
6 | 72909-11 Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG | Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG | |
7 | 69201164 Деталь SEAL,CONN/TERM,X | pin, 22 AWG | Деталь SEAL,CONN/TERM,X | pin, 22 AWG | |
8 | 69201583 Деталь SUPPORT,ENGN HARN,STEERING HEAD CADDY | steering head caddy | Деталь SUPPORT,ENGN HARN,STEERING HEAD CADDY | steering head caddy | |
9 | 69201584 Деталь SUB-ASSY,HARN/WRG,STEERING HEAD COVER | steering head, sub-assembly | Деталь SUB-ASSY,HARN/WRG,STEERING HEAD COVER | steering head, sub-assembly | |
10 | 69201656 Деталь CONNECTOR,JAE, 2 PIN, GRAY | two-way pin (gray) | Деталь CONNECTOR,JAE, 2 PIN, GRAY | two-way pin (gray) | |
11 | 69201711 Деталь CONNECTOR,8-WAY PIN | eight-way pin | Деталь CONNECTOR,8-WAY PIN | eight-way pin | |
12 | 72479-07BK Деталь HOUSING,8-WAY,SCKT/BLACK | eight-way socket (black) | Деталь HOUSING,8-WAY,SCKT/BLACK | eight-way socket (black) |
