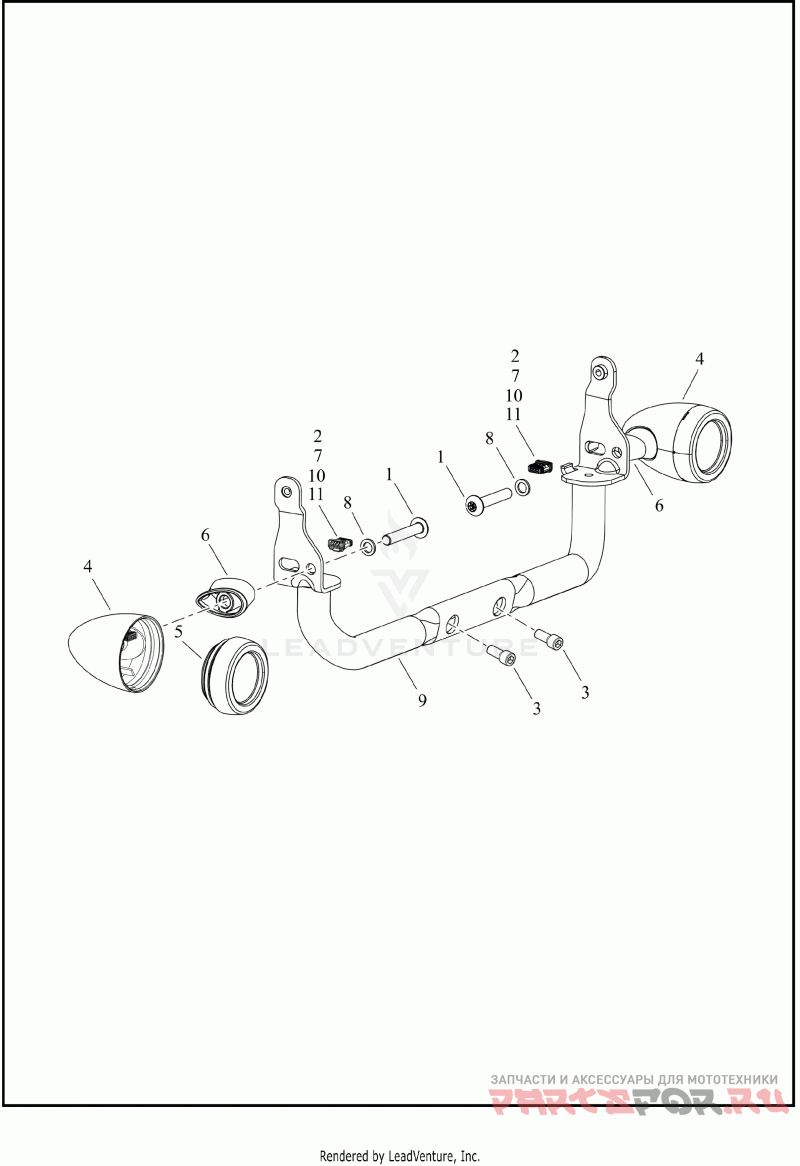

TURN SIGNALS, FRONT - FXLRST
Harley Davidson FXLRST 1YXA LOW RIDER ST (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 4779 Деталь SCREW,X | Деталь SCREW,X | |
2 | 5118 Деталь TERMINAL,X | Деталь TERMINAL,X | |
3 | 3275 Деталь SCREW,HEX SCKT CAP | frame mounting | Деталь SCREW,HEX SCKT CAP | frame mounting | |
4 | 68460-07 Деталь TURNSIGNAL,HOUSING | turn signal (black) | Деталь TURNSIGNAL,HOUSING | turn signal (black) | |
4 | 68737-00 Деталь TURNSIGNAL,HOUSING | turn signal (chrome) | Деталь TURNSIGNAL,HOUSING | turn signal (chrome) | |
5 | 67801468 Деталь TURNSIGNAL,LED,FT/RR,AMBER,CERTIFIED | (amber) | Деталь TURNSIGNAL,LED,FT/RR,AMBER,CERTIFIED | (amber) | |
6 | 69933-08 Деталь TURNSIGNAL,STANDOFF,GBLK | rear lamp mounting (gloss black) | Деталь TURNSIGNAL,STANDOFF,GBLK | rear lamp mounting (gloss black) | |
7 | 72908-11 Деталь CONNECTOR,X | Деталь CONNECTOR,X | |
8 | 6771A Деталь WASHER,FERROUS HEAT TREATED | Деталь WASHER,FERROUS HEAT TREATED | |
9 | 47200898 Деталь BRKT,FR FAIR SPRT,LOWER | fairing support, lower | Деталь BRKT,FR FAIR SPRT,LOWER | fairing support, lower | |
10 | 69203762 Деталь HARNESS,WIRE,ASSEMBLY,3 WIRE,45 IN | three-wire, with 5118, 69200308, 69201179 (not shown) | Деталь HARNESS,WIRE,ASSEMBLY,3 WIRE,45 IN | three-wire, with 5118, 69200308, 69201179 (not shown) | |
11 | 69200308 Деталь TERMINAL,SOCKET,#22AWG(PO) | socket, 22 AWG | Деталь TERMINAL,SOCKET,#22AWG(PO) | socket, 22 AWG |
